TQ3631

The TQ3631 is a 3V, RF LNA IC designed specifically for PCS band CDMA applications. It's RF performance meets the requirements of products designed to the IS-95 specifications. The TQ3631 is designed to be used with the TQ5631 (CDMA mixer) which provides a complete CDMA receiver for 1900MHz phones.

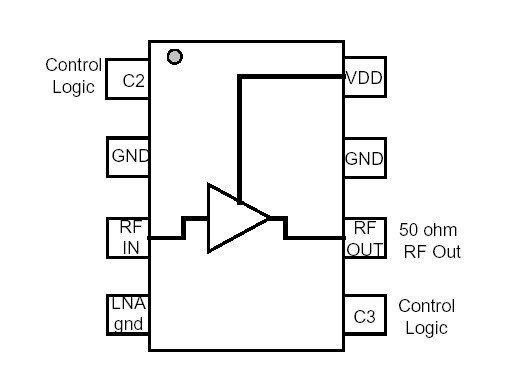

The LNA TQ3631 incorporates on-chip switches which determine high, low and bypass mode select. When used with the TQ5631 (CDMA RFA/mixer), four gain steps are available for use which provide low current/high IP3 and gain. The RF output port is internally matched to 50 Ω, greatly simplifying the design and minimizing the number of external components. The TQ3631 achieves excellent RF performance with low current consumption, supporting long standby and talk times in portable applications. Coupled with the very small SOT23-8 package, the TQ3631 is ideally suited for PCS band mobile phones.
