TPS74301

Features: ` 1.5A LDO Regulator with Programmable Sequencing` Track and Power-Good (PG) Allows Three Types of Sequencing: Simultaneous, Sequential, and Ratiometric` Supports Input Voltages as Low as 0.9V` Adjustable Output (0.8V to 3.3V)` Ultra-Low Dropout: 60mV at 1.5A (typ)` 1% Accuracy Over Lin...

product image

TPS74301 Picture
See larger image
SeekIC No. : 004527383 Detail

TPS74301: Features: ` 1.5A LDO Regulator with Programmable Sequencing` Track and Power-Good (PG) Allows Three Types of Sequencing: Simultaneous, Sequential, and Ratiometric` Supports Input Voltages as Low as...

TPS74301 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS74301
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 1.5A LDO Regulator with Programmable Sequencing
` Track and Power-Good (PG) Allows Three Types of Sequencing:
    Simultaneous, Sequential, and Ratiometric
` Supports Input Voltages as Low as 0.9V
` Adjustable Output (0.8V to 3.3V)
` Ultra-Low Dropout: 60mV at 1.5A (typ)
` 1% Accuracy Over Line, Load, and Temperature
` Stable with Any or No Output Capacitor
` Active High Enable
` Open-Drain Power-Good (5* 5 QFN)
` Available in 5mm * 5mm * 1mm QFN and DDPAK-7 Packages
` External BIAS Permits Low VIN Operation with Excellent Transient Response


Application

· FPGA Applications
· DSP Core and I/O Voltages
· Post-Regulation Applications
· Applications with Special Start-up time Requirements


Pinout

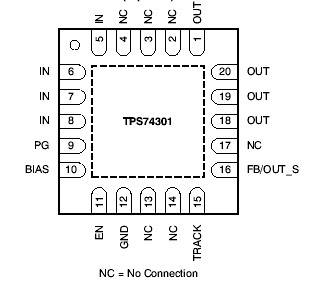

Connection Diagram


Specifications

  TPS74301 UNIT
VIN, VBIAS Input voltage range 0.3 to +6 V
VEN Enable voltage range 0.3 to +6 or VIN + 0.3, whichever is greater V
VPG Power-good voltage range 0.3 to +6 V
VOUT Output voltage range 0.3 to VIN V
IOUT Maximum output current Internally limited
Output short circuit duration Indefinite
PDISS Continuous total power dissipation See Dissipation Ratings
TJ Operating junction temperature range 40 to +150 °C
TSTG Storage junction temperature range 55 to +150 °C
ESD rating, HBM 2 kV
ESD rating, CDM 500 V



Description

The TPS74301 low dropout (LDO) linear regulator provides an easy-to-use power management solution for many high-current applications. The Track input allows user-programmed sequencing to minimize the voltage difference among supply rails during startup.The enable input (EN) and power-good (PG) outputs allow easy sequential sequencing with external regulators. This complete flexibility of TPS74301 permits the user to configure a solution that will meet the sequencing requirements of FPGAs, DSPs, and other applications with special startup requirements.

A precision reference and error amplifier TPS74301 deliver 1% accuracy over load, line, temperature, and process.The LDO regulator is stable with any or no output capacitor and is fully specified from 40°C to +125°C.The TPS74301 is offered in a small 5mm * 5mm QFN package, yielding a highly compact total solution size. For applications that require additional power dissipation, the DDPAK (KTW) package is also available.
