TPS7250QD

Number of Outputs : 1
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Output Voltage : 5 V
Output Type : Fixed
Input Voltage MAX : 10 V
Package / Case : SOIC-8
Output Current : 250 mA
Dropout Voltage (Max) : 0.012 V at 10 mA
Load Regulation : 79 mV


Features:

· Available in 5-V, 4.85-V, 3.3-V, 3.0-V, and
  2.5-V Fixed-Output and Adjustable Versions
· Dropout Voltage <85 mV Max at
  IO = 100 mA (TPS7250)
· Low Quiescent Current, Independent of
  Load, 180 mA Typ
· 8-Pin SOIC and 8-Pin TSSOP Package
· Output Regulated to ±2% Over Full
  Operating Range for Fixed-Output Versions
· Extremely Low Sleep-State Current, 0.5 mA Max
· Power-Good (PG) Status Output

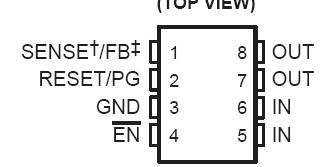

Pinout




Specifications

Input voltage range􀀀, VI, PG, SENSE, EN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 11 V
Output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.5 A
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Dissipation Rating Tables 1 and 2
Operating virtual junction temperature range, T_J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 150°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
‡ All voltage values are with respect to network ground terminal.


Description

The TPS7250QD low-dropout (LDO) voltage regulators offers the benefits of low-dropout voltage, micropower operation, and miniaturized packaging. These regulators TPS7250QD feature extremely low dropout voltages and quiescent currents compared to conventional LDO regulators. Offered in small-outline integrated-circuit (SOIC) packages and 8-terminal thin shrink small-outline (TSSOP), the TPS7250QD devices are ideal for cost-sensitive designs and for designs where board space is at a premium.

A combination of new circuit design and process innovation has enabled the usual pnp pass transistor to be replaced by a PMOS device. Because the PMOS pass element of TPS7250QD behaves as a low-value resistor, the dropout voltage is very low maximum of 85 mV at 100 mA of load current (TPS7250) and is directly proportional to the load current (see Figure 1). Since the PMOS pass element is a voltage-driven device, the quiescent current is very low (300 mA maximum) and is stable over the entire range of output load current (0 mA to 250 mA). Intended for use in portable systems such as laptops and cellular phones, the low-dropout voltage and micropower operation of TPS7250QD result in a significant increase in system battery operating life.

The TPS7250QD also features a logic-enabled sleep mode to shut down the regulator, reducing quiescent current to 0.5 mA maximum at TJ = 25°C. Other features include a power-good function that reports low output voltage and may be used to implement a power-on reset or a low-battery indicator.

The TPS7250QD is offered in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V fixed-voltage versions and in an adjustable version (programmable over the range of 1.2 V to 9.75 V). Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges (3% for adjustable version).

Parameters:

Technical/Catalog Information	TPS7250QD
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Regulator Topology	Positive Fixed
Current - Output	250mA
Voltage - Output	5V
Operating Temperature	-55°C ~ 150°C
Voltage - Input	5.41 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	600mA
Current Short Circuit (Isc)	-
Drawing Number	296; 4040047-2; D; 8
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TPS7250QD TPS7250QD 296 1361 5 ND 29613615ND 296-1361-5
