Product Details

Description



Features:

· 8-V to 14-V Input Voltage Range
· VS Output Voltage Range up to 20 V
· 1% Accurate Boost Converter With 2.8-A Switch Current
· 1.5% accurate 1.8-A Step-Down Converter
· 500-kHz/750-kHz Fixed Switching Frequency
· Negative Charge Pump Driver for VGL
· Positive Charge Pump Driver for VGH
· Adjustable Sequencing for VGL, VGH
· Gate Drive Signal to Drive External MOSFET
· Internal and Adjustable Soft Start
· Short-Circuit Protection
· 23-V (TPS65160) Overvoltage Protection
· 19.5-V (TPS65160A) Overvoltage Protection
· Thermal Shutdown
· Available in TSSOP-28 Package



Application

· TFT LCD Displays for Monitor and LCD TV

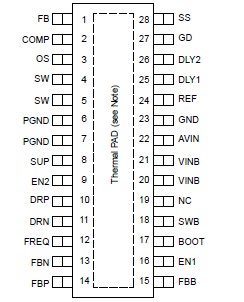

Pinout

  Connection Diagram


Specifications

  UNIT
Voltages on pin VIN, SUP(2) 0.3 V to 16.5 V
Voltages on pin EN1, EN2, FREQ(2) 0.3 V to 15 V
Voltage on pin SW (2) 25 V
Voltage on pin SWB(2) 20 V
Voltages on pin OS, GD(2) 25 V
Continuous power dissipation See Dissipation Rating Table
TA Operating junction temperature 40°C to 150°C
Tstg Storage temperature range 65°C to 150°C
Temperature (soldering, 10 s) 260°C

(2) All voltage values are with respect to network ground terminal


Description

The TPS65160 offers a compact power supply solution to provide all four voltages required by thin-film transistor(TFT) LCD panel. With its high current capabilities, the device is ideal for large screen monitor panels and LCD TV applications.
