Features: Up to 90% Efficiency From 2.7-V to 5.4-VInput Voltage Range Because of SpecialSwitching Topology
Up to 300-mAOutput Current (TPS60130and TPS60131)
No Inductors Required, Low EMI
Regulated 5-V ±4% Output
Only FourExternal Components Required
60-m A Quiescent Supply Current
0.05-m A Shutdown Current
Load Disconnected inShutdown
Space-Saving, Thermally-EnhancedPowerPAD Package
Evaluation Module Available(TPS60130EVM143)
ApplicationBattery-Powered Applications
Three Battery Cells to 5-V Conversion or Point-of-Use 3.3 V to 5-V Conversion
Lilon Battery to 5-V Conversion
Portable Instruments
Battery-Powered Microprocessor Systems
Backup-Battery Boost Converters
PDA's, Organizers, Laptops
Handheld Instrumentation
Medical Instruments (e.g., Glucose Meters)
PCMCIA and 5-V Smart Card Supply

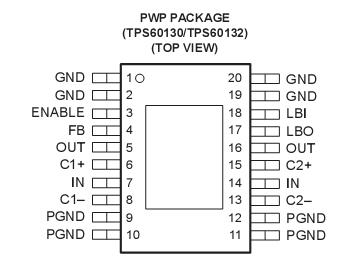

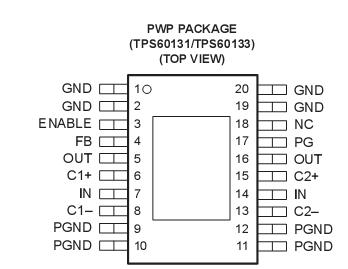

Pinout
SpecificationsInput voltage range, VID (IN, OUT, ENABLE, FB, LBI, LBO/PG) . . . . . . . . . . . . . . 0.3 V to 5.5 V
IDifferential input voltage, V ID (C1+, C2+ to GND) . . . . . . . . . . . . . .. . ..0.3 V to (V + 0.3 V)
Differential input voltage, V ID (C1, C2 to GND) . . . . . . . . . . . . . . . . ..0.3 V to (V + 0.3 V)
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Continuous output current: TPS60130, TPS60131 . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 mA
TPS60132, TPS60133 . . . . . . . . . . . . . . .. . . .. . . . . . . . .. ...200 mA
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10s . . . . . . . . . . . . . . . . . . . . . . . . ..260
Maximum junction temperature, TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
DescriptionThe TPS6013x step-up, regulated charge pumps generate a 5-V ±4% output voltage from a 2.7-V to 5.4-V input voltage (three alkaline, NiCd, or NiMH batteries or one Lithium or Lilon battery). The output current is 300 mAfor the TPS60130/ TPS60131 and 150 mA for the TPS60132/ TPS60133, all from a 3-V input. Only four externalcapacitors are needed to build a complete high efficiency dc/dc charge pump converter. To achieve the highefficiency over a wide input voltage range, the charge pump automatically selects between a 1.5x or doublerconversion mode. From a 3-V input, all ICs can start with full load current.
TPS60130 Data Sheet
