TPS54972

Features: ` Tracks Externally Applied Reference Voltage` 15-m MOSFET Switches for High Efficiency at 9-A Continuous Output Source or Sink Current` 6% to 90% VI Output Tracking Range` Wide PWM Frequency: Fixed 350 kHz or Adjustable 280 kHz to 700 kHz ` Load Protected by Peak Current Limit and Therm...

product image

TPS54972 Picture
See larger image
SeekIC No. : 004526937 Detail

TPS54972: Features: ` Tracks Externally Applied Reference Voltage` 15-m MOSFET Switches for High Efficiency at 9-A Continuous Output Source or Sink Current` 6% to 90% VI Output Tracking Range` Wide PWM Freque...

TPS54972 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS54972
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Tracks Externally Applied Reference Voltage
` 15-m MOSFET Switches for High Efficiency at 9-A Continuous Output Source or Sink Current
` 6% to 90% VI Output Tracking Range
` Wide PWM Frequency: Fixed 350 kHz or Adjustable 280 kHz to 700 kHz ` Load Protected by Peak Current Limit and Thermal Shutdown
` Integrated Solution Reduces Board Area and Total Cost


Application

· DDR Memory Termination Voltage
· Active Termination of GTL and SSTL High-Speed Logic Families
· DAC Controlled High Current Output Stage
· Precision Point of Load Power Supply

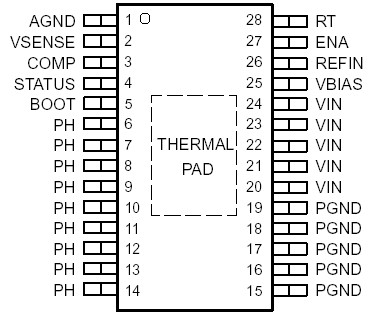

Pinout

Connection Diagram


Specifications

    TPS54380
Input voltage range, VI ENA −0.3 V to 7 V
VIN −0.3 V to 4.5 V
RT −0.3 V to 6 V
VSENSE, REFIN −0.3 V to 4V
BOOT −0.3 V to 17 V
Output voltage range, VO VBIAS, COMP, STATUS −0.3 V to 7 V
PH −0.6 V to 10 V
Source current, IO PH Internally Limited
COMP, VBIAS 6mA
Sink current, IS PH 6A
COMP 6mA
ENA, STATUS 10mA
Voltage differential AGND to PGND ±0.3
Operating virtual junction temperature range, TJ −40 to 125°C
Storage temperature, Tstg −65 to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 300°C



Description

As a member of the SWIFTô family of dc/dc regulators, the TPS54972 low-input voltage high-output current synchronous-buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter L and C components; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3.0 V; an internally set slow-start circuit to limit in-rush currents; and a status output to indicate valid operating conditions.

The TPS54972 is available in a thermally enhanced 28-pin TSSOP (PWP) PowerPADô package, which eliminates bulky heatsinks. TI TPS54972 provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
