TPS54380

Features: · Power-Up/Down Tracking for Sequencing· 60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Source or Sink Current· Wide PWM Frequency: Fixed 350 kHz or Adjustable 280 kHz to 700 kHz· Power Good and Enable· Load Protected by Peak Current Limit and Thermal Shutdown· ...

product image

TPS54380 Picture
See larger image
SeekIC No. : 004526909 Detail

TPS54380: Features: · Power-Up/Down Tracking for Sequencing· 60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Source or Sink Current· Wide PWM Frequency: Fixed 350 kHz or Adjustable 28...

TPS54380 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS54380
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Power-Up/Down Tracking for Sequencing
· 60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Source or Sink Current
· Wide PWM Frequency: Fixed 350 kHz or Adjustable 280 kHz to 700 kHz
· Power Good and Enable
· Load Protected by Peak Current Limit and Thermal Shutdown
· Integrated Solution Reduces Board Area and Component Count


Application

· Low-Voltage, High-Density Distributed Power Systems
· Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors Requiring Sequencing
· Broadband, Networking and Optical Communications Infrastructure

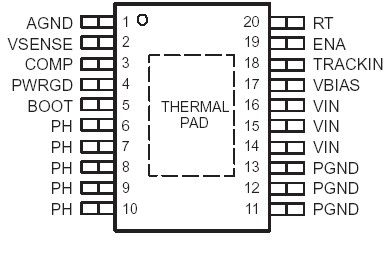

Pinout

Connection Diagram


Specifications

    TPS54380 UNIT
Input voltage range, VI VIN, ENA −0.3 V to 7 V V
RT −0.3 V to 6 V
VSENSE, TRACKIN −0.3 V to 4V
BOOT −0.3 V to 17 V
Output voltage range, VO VBIAS, COMP, PWRGD −0.3 V to 7 V V
PH −0.6 V to 10 V
Source current, IO PH Internally Limited
COMP, VBIAS 6 mA
Sink current, IS PH 6 A
COMP 6 mA
ENA, PWRGD 10
Voltage differential AGND to PGND ±0.3 V
Operating virtual junction temperature range, TJ −40 to 125 °C
Storage temperature, Tstg −65 to 150 °C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 300 °C



Description

As a member of the SWIFT family of dc/dc regulators, the TPS54380 low-input voltage high-output current synchronous buck PWM converter integrates all required active components. Using the TRACKIN pin with other regulators, simultaneous power up and down are easily implemented. Included on the substrate with the listed features are a true, high performance, voltage error amplifier, TPS54380 enables maximum performance and flexibility in choosing the output filter L and C components; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally or externally set slow-start circuit to limit inrush currents; and a power good output useful for processor/logic reset.

The TPS54380 is available in a thermally enhanced 20-pin TSSOP (PWP) PowerPAD package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
