Features: · Separate Low-Voltage Power Bus
· 8-mW MOSFET Switches for High Efficiency at 14-A Continuous Output
· Adjustable Output Voltage Down to 0.9 V
· Externally Compensated With 1% Internal Reference Accuracy
· Fast Transient Response
· Wide PWM Frequency: Adjustable 280 kHz to 700 kHz
· Load Protected by Peak Current Limit and Thermal Shutdown
· Integrated Solution Reduces Board Area and Total Cost
Application· Low-Voltage, High-Density Systems With Power Distributed at 2.5 V, 3.3 V Available
· Point of Load Regulation for High- Performance DSPs, FPGAs, ASICs, and Microprocessors
· Broadband, Networking, and Optical Communications Infrastructure

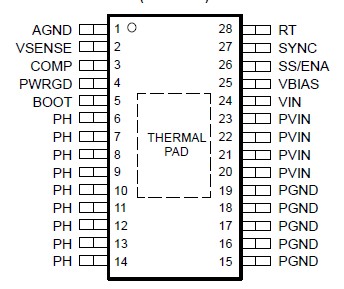

Pinout
Specifications
| |
TPS54010 |
UNIT |
| VI Input voltage range |
SS/ENA, SYNC |
0.3 to 7 |
V |
| RT |
0.3 to 6 |
| VSENSE |
0.3 to 4 |
| PVIN, VIN |
0.3 to 4.5 |
| BOOT |
0.3 to 10 |
| VO Output voltage range |
VBIAS, COMP, PWRGD |
0.3 to 7 |
V |
| PH |
0.6 to 6 |
| VO Source current |
PH |
Internally limited |
| COMP, VBIAS |
6 |
mA |
| IS Sink current |
PH |
25 |
A |
| COMP |
6 |
| SS/ENA, PWRGD |
10 |
mA |
| Voltage differential |
AGND to PGND |
±0.3 |
V |
| TJ Operating junction temperature range |
40 to 125 |
|
| Tstg Storage temperature range |
65 to 150 |
|
| Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds |
300 |
|
| Electrostatic Discharge (ESD) ratings |
Human body model (HBM) |
1.5 |
kV |
| CDM |
750 |
V |
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
DescriptionAs a member of the SWIFT™ family of dc/dc regu- lators, the TPS54010 low-input voltage, high-output current synchronous buck PWM converter integrates all required active components. Included on the substrate with the listed features of TPS54010 are a true, high- performance, voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter L and C components; an undervoltage-lockout circuit to pre- vent start-up until the VIN input voltage reaches 3 V; an internally and externally set slowstart circuit to limit in-rush currents; and a power-good output useful for processor/logic reset, fault signaling, and supply se-quencing.
The TPS54010 is available in a thermally enhanced 28-pin TSSOP (PWP) PowerPAD™ package, which eliminates bulky heatsinks.
TPS54010 Data Sheet
