Product Details

Description



Features:

• Single-Chip Switching-Power-Supply
  Control With Limited External Components
• Built-In PWM Control Circuit
• Open-Collector Output for Direct Drive of Transformer
• Variable Dead-Time Control
• Overvoltage and Undervoltage Detection
  and Latch-Up for Each Supply Voltage:
  5 V, 12 V, 5 V, and 12 V
• System Overcurrent Protection
• Wide Supply Range From 7 V to 40 V
• Power-Good Indicator Function

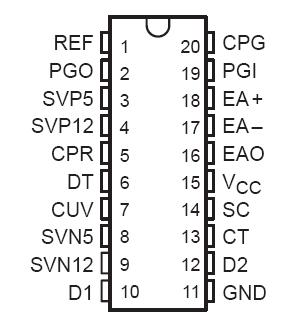

Pinout

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 V
Amplifier input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  VCC + 0.3 V
Collector output voltage, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 V
Collector output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 mA
Total power dissipation at (or below) 25°C free-air temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 W
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 70°C


Description

The TPS5206CN is a bipolar monolithic integrated circuit designed for push-pull-type switching-power-supply (SPS) control in desktop PC applications. It offers pulse-width-modulation (PWM) control and power-supply supervisor functions, including detection of undervoltage and overvoltage conditions on ±5 V and ±12 V system supplies. TPS5206CN also detects overcurrent conditions on the SPS system output. This single chip of TPS5206CN reduces the total component count and provides additional design flexibility, which minimizes cost and printed-circuit-board (PCB) space requirements in present and new SPS designs.
