TPS40060

Features:

• Operating Input Voltage 10 V to 55 V
• Input Voltage Feed-Forward Compensation
• < 1% Internal 0.7-V Reference
• Programmable Fixed-Frequency, Up to 1-MHz Voltage Mode Controller
• Internal Gate Drive Outputs for High-Side P-Channel and Synchronous N-Channel MOSFETs
• 16-Pin PowerPAD™ Package (JC =2°C/W)
• Thermal Shutdown
• Externally Synchronizable
• Programmable High-Side Sense Short Circuit Protection
• Programmable Closed-Loop Soft-Start
• TPS40060 Source Only/TPS40061 Source/Sink


Application

• Networking Equipment
• Telecom Equipment
• Base Stations
• Servers

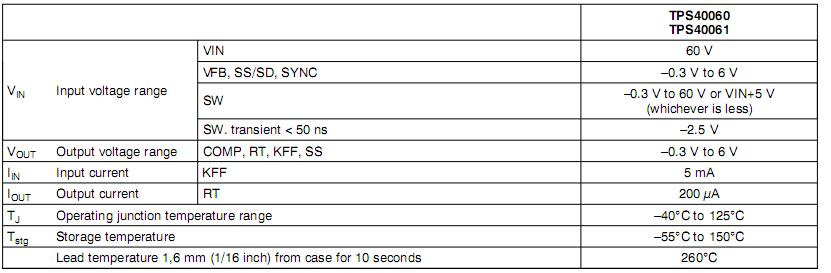

Specifications




Description

The TPS40060 and TPS40061 are high-voltage, wide input (10 V to 55 V) synchronous, step-down con-verters.

This TPS40060 devices offers design flexibility with a variety of user programmable functions, including;soft-start, UVLO, operating frequency, voltage feed-forward, high-side current limit, and loop com-pensation. These devices are also synchronizable to an external supply.

The TPS40060 and TPS40061 incorporate MOSFET gate drivers for external P-channel high-side and N-channel synchronous rectifier (SR) MOSFETs. Gate drive logic incorporates anti-cross conduction circuitry to prevent simultaneous high-side and synchronous rectifier conduction.
