TPS3808

Features: • Power-On Reset Generator with Adjustable Delay Time: 1.25ms to 10s• Very Low Quiescent Current: 2.4 µ A typ• High Threshold Accuracy: 0.5% typ• Fixed Threshold Voltages for Standard Voltage Rails from 0.9V to 5V and Adjustable Voltage Down to 0.4V Are Avai...

product image

TPS3808 Picture
See larger image
SeekIC No. : 004526755 Detail

TPS3808: Features: • Power-On Reset Generator with Adjustable Delay Time: 1.25ms to 10s• Very Low Quiescent Current: 2.4 µ A typ• High Threshold Accuracy: 0.5% typ• Fixed Thresh...

TPS3808 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS3808
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power-On Reset Generator with Adjustable Delay Time: 1.25ms to 10s
• Very Low Quiescent Current: 2.4 µ A typ
• High Threshold Accuracy: 0.5% typ
• Fixed Threshold Voltages for Standard Voltage Rails from 0.9V to 5V and Adjustable Voltage Down to 0.4V Are Available
• Manual Reset ( MR ) Input
• Open-Drain RESET Output
• Temperature Range: 40 ° C to +125 ° C
• Small SOT23 and 2mm * 2mm QFN Packages


Application

• DSP or Microcontroller Applications
• Notebook/Desktop Computers
• PDAs/Hand-Held Products
• Portable/Battery-Powered Products
• FPGA/ASIC Applications


Pinout

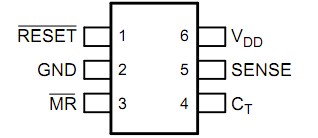

Connection Diagram


Specifications

  TPS3808 UNIT
Input voltage range, V DD 0.3 to 7.0 V
C T voltage range, V CT 0.3 to V DD + 0.3 V
Other voltage ranges: V RESET , V MR , V SENSE 0.3 to 7 V
RESET pin current 5 mA
Operating junction temperature range, T J 40 to +150 ° C
Storage temperature range, T STG 65 to +150 ° C
ESD rating, HBM 2 kV
ESD rating, CDM 500 V



Description

The TPS3808xxx family of microprocessor supervisory circuits monitor system voltages from 0.4V to 5.0V, asserting an open drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset ( MR ) pin drops to a logic low. The RESET output remains low for the user adjustable delay time after the SENSE voltage and manual reset ( MR ) return above their thresholds.

The TPS3808 uses a precision reference to achieve 0.5% threshold accuracy for V IT 3.3V. The reset delay time can be set to 20ms by disconnecting the C T pin, 300ms by connecting the C T pin to V DD using a resistor, or can be user-adjusted between 1.25ms and 10s by connecting the C T pin to an external capacitor. The TPS3808 has a very low typical quiescent current of 2.4 µ A so it is well-suited to battery-powered applications. It is available in a small SOT23 and an ultra-small 2mm * 2mm QFN PowerPAD ™ package and is fully specified over a temperature range of 40 ° C to +125 ° C (T J ).
