TPS3510

Features: Overvoltage Protection and Lockout for 12 V, 5 V, 3.3 V Undervoltage Protection and Lockout for 5 V and 3.3 V Fault Protection Output With Open-Drain Output Stage Open-Drain Power Good Output Signal for Power Good Input, 3.3 V and 5 V Power Good Delay; 300-ms TPS3510, 150-ms TPS3511 75-...

product image

TPS3510 Picture
See larger image
SeekIC No. : 004526725 Detail

TPS3510: Features: Overvoltage Protection and Lockout for 12 V, 5 V, 3.3 V Undervoltage Protection and Lockout for 5 V and 3.3 V Fault Protection Output With Open-Drain Output Stage Open-Drain Power Good Ou...

TPS3510 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS3510
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Overvoltage Protection and Lockout for 12 V, 5 V, 3.3 V
Undervoltage Protection and Lockout for 5 V and 3.3 V
Fault Protection Output With Open-Drain Output Stage
Open-Drain Power Good Output Signal for Power Good Input, 3.3 V and 5 V
Power Good Delay; 300-ms TPS3510, 150-ms TPS3511
75-ms Delay for 5-V and 3.3-V Power Supply Short-Circuit Turnon Protection
2.3-ms PSON Control to FPO Turnoff Delay
38-msPSON Control Debounce
73-s Width Noise Deglitches
Wide Supply Voltage Range From 4 V to 15


Pinout

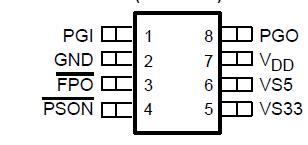

Connection Diagram


Specifications

Supply voltage, VDD (see Note1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 V
Output voltage VO: FPO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 V
                              PGO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 V
All other pins (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 16 V
Continuous total power dissipation . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Soldering temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C


Description

The TPS3510/1 is designed to minimize external components of personal-computer switching power supply systems. It provides protection circuits, power good indicator, fault protection output (FPO) and PSON control.

TPS3510/1 Overvoltage protection (OVP) monitors 3.3 V, 5 V, and 12 V (12-V signal detects via VDD pin). Undervoltage protection (UVP) monitors 3.3 V and 5 V. When an OV or UV condition is detected, the power good output (PGO) is set to low and FPO is latched high. PSON from low to high resets the protection latch. UVP function is enabled 75 ms after PSON is set low and debounced. Furthermore, there is a 2.3-ms delay (and an additional 38-ms debounce) at turnoff. There is no delay during turnon.

Power good feature monitors PGI, 3.3 V and 5 V and issues a power good signal when the output is ready.The TPS3510/1 is characterized for operation from 40°C to 85°C.
