TPS3307-18-Q1

Features: ` Qualification in Accordance With AEC-Q100†` Qualified for Automotive Applications` Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval` ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF,...

product image

TPS3307-18-Q1 Picture
See larger image
SeekIC No. : 004526721 Detail

TPS3307-18-Q1: Features: ` Qualification in Accordance With AEC-Q100†` Qualified for Automotive Applications` Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval` ESD Pr...

TPS3307-18-Q1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS3307-18-Q1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Qualification in Accordance With AEC-Q100†
` Qualified for Automotive Applications
` Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval
` ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
` Triple Supervisory Circuits for DSP and Processor-Based Systems
` Power-On Reset Generator with Fixed Delay Time of 200 ms, No External Capacitor Needed
` Temperature-Compensated Voltage Reference
` Maximum Supply Current of 40 A
` Supply Voltage Range . . . 2 V to 6 V
` Defined RESET Output from VDD 1.1 V
` SO-8 Package
` Temperature Range . . . 40°C to 125°C


Application

• Automotive applications using DSPs, Microcontrollers or Microprocessors
• Industrial Equipment
• Programmable Controls
• Automotive Systems


Pinout

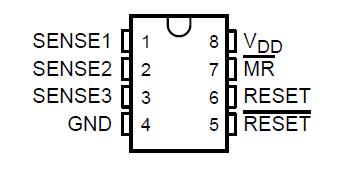

Connection Diagram


Specifications

Supply voltage, VDD (see Note1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
All other pins (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 7 V
Maximum low output current, IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5 mA
Maximum high output current, IOH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5 mA
Input clamp current, IIK (VI < 0 or VI > VDD) . . . . . . . . . . . . . . . . . . . . . . . . .  ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . .40°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Soldering temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C



Description

The TPS3307-18 is a micropower supply voltage supervisor designed for circuit initialization primarily in automotive DSP and processor-based systems, which require more than one supply voltage.

The TPS3307-18 is designed for monitoring three independent supply voltages: 3.3 V/1.8 V/adj,. The adjustable SENSE input allows the monitoring of any supply voltage >1.25 V.The various supply voltage supervisors are designed to monitor the nominal supply voltage as shown in the following supply voltage monitoring table.
