TPS2384

Features: Quad-Port Power Management With Integrated Switches and Sense Resistors Compliant to IEEE 802.3af Standard Operates from a Single 48-V Input Supply Individual Port 15-bit A/D Auto, Semi-Auto and Power Management Operating Modes Controlled Current Ramps for Reduced EMI and Charging of PD'...

product image

TPS2384 Picture
See larger image
SeekIC No. : 004526640 Detail

TPS2384: Features: Quad-Port Power Management With Integrated Switches and Sense Resistors Compliant to IEEE 802.3af Standard Operates from a Single 48-V Input Supply Individual Port 15-bit A/D Auto, Semi-Au...

TPS2384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS2384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Quad-Port Power Management With Integrated Switches and Sense Resistors
Compliant to IEEE 802.3af Standard
Operates from a Single 48-V Input Supply
Individual Port 15-bit A/D
Auto, Semi-Auto and Power Management Operating Modes
Controlled Current Ramps for Reduced EMI and Charging of PD's Bulk Capacitance
I2C Clock and Oscillator Watch Dog Timers
Over-Temperature Protection
DC and DC Modulated Disconnect
Supports Legacy Detection for Non-Compliant PD
Supports AC Disconnect
High-Speed 400-kHz I2C Interface
Comprehensive Power Management Software Available
Operating Temperature Range −40°C to 125°C


Application

 Ethernet Enterprise Switches
Ethernet Hubs
SOHO Hubs
Ethernet Mid-Spans
PSE Injectors


Pinout

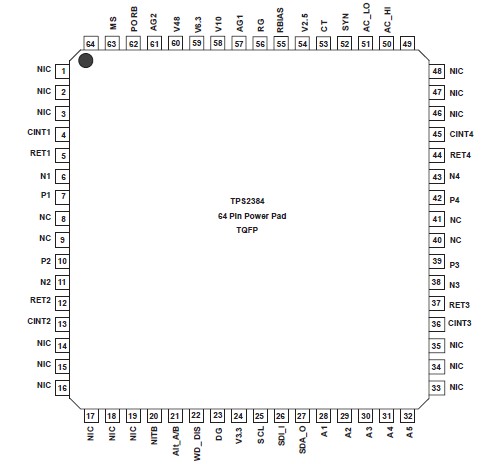

Connection Diagramimu


Specifications

PARAMETER SYMBOL RATING UNITS
V10 current sourced   100 A
V3.3 current sourced   5 mA
Applied voltage on CINT#, CT, RBIAS   −0.5 to +10 V
Applied voltage on SCL_I, SDA_I, SDA_O, INTB, A1, A2, A3, A4,
A5, MS, PORB, WD_DIS, ALT_A/B, AC_LO, AC_HI		   −0.5 to +6
Applied voltage on V48, P#, N#   −0.5 to +80
Junction operating temperature TJ −40 to 125 oC
Storage temperature Tstg −55 to 150
Lead temperature (soldering, 10 sec.) Tsol 260



Description

The TPS2384 is a quad-port power sourcing equipment power manager (PSEPM) and is compliant to the Power-over-Ethernet (PoE) IEEE 802.3af standard.The TPS2384 operates from a single 48-V supply and over a wide temperature range (−40°C to +125°C). The integrated output eliminates 2 external components per port (FET and sense resistor) and will survive 100-V transient. Four individual 15-bit A/D converters are used to measure port resistance, voltage, current and die temperature making PSE solution simple and robust.The TPS2384 comes with a comprehensive software solution to meet the most demanding application which can serve as a core for all PoE system designs.
