TPS2383B

Features: · Compliant to Power Over Ethernet IEEE 802.3af Standard· Two-Point 25-kW Resistor Discovery· Capacitive Detection for Non-Compliant Legacy Loads· Power Classification· Controlled di/dt Ramp Power-Up and Power-Down for EMI Reduction· Current Management for Charging Powered Device Bulk Ca...

product image

TPS2383B Picture
See larger image
SeekIC No. : 004526639 Detail

TPS2383B: Features: · Compliant to Power Over Ethernet IEEE 802.3af Standard· Two-Point 25-kW Resistor Discovery· Capacitive Detection for Non-Compliant Legacy Loads· Power Classification· Controlled di/dt Ra...

TPS2383B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS2383B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Compliant to Power Over Ethernet IEEE 802.3af Standard
· Two-Point 25-kW Resistor Discovery
· Capacitive Detection for Non-Compliant Legacy Loads
· Power Classification
· Controlled di/dt Ramp Power-Up and Power-Down for EMI Reduction
· Current Management for Charging Powered Device Bulk Capacitance
· Electronic Circuit Breaker
· Fault detection
· Input Undervoltage Lockout (UVLO)
· Load Overcurrent and Undercurrent Detection
· 12-Bit Port Current and Voltage Acquisition
· Standard Slave I2C Serial Interface
· 5-Bit Serial Address Selectability
·Discovery and/or Classification Bypass


Application

· PoE Switches
· Mid-Span Injectors


Pinout

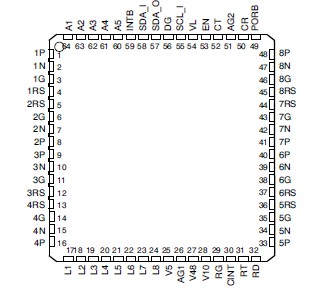

Connection Diagram


Specifications

  TPS2383B
UNITS
VCC Input voltage range V48, 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 1N, 2N, 3N, 4N, 5N, 6N, 7N, 8N 0.5 to 80 V
1RS, 2RS, 3RS, 4RS, 5RS, 6RS, 7RS, 8RS, 1G, 2G, 3G, 4G, 5G, 6G, 7G,
8G, V10		 0.5 to 12 V
VL 0.5 to 3.9 V
V5 0.5 to 6 V
SCL_I, SDA_I, SDA_O, INTB, A1, A2, A3, A4, A5, EN, PORB 0.5 to 6V
Tstg Storage temperature   55 to 150°C
TJ Operating tempera-
ture		   40 to 125°C
Tsol Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 260°C



Description

The TPS2383B is a power sourcing equipment power manager (PSEPM) that are compliant to the power-over-ethernet (PoE) IEEE 802.3af Standard. A PSEPM port can discover, classify and deliver power to a powered device (PD) capable of accepting PoE twisted pair cable. The TPS2383B is fully programmable by the user. This allows for the detection and powering of both fully compliant 802.3 devices as well as custom detection of legacy devices.
