Product Details

Description

Features:

12-V, 12-V, 3.3-V, 5-V Main Power Switching and Auxiliary 3.3-V Power Switching
12-V, 12-V And Auxiliary 3.3-V Power FETs
Hot-Swap Protection and Control of All Supplies
Overcurrent Protection for All Supplies
Isolation of Any Load Fault in One Slot from Any Other Slot
Undervoltage Monitoring for the Main 12-V,3.3-V, 5-V and Auxiliary 3.3-V Supplies
Power Fault Latching
Overtemperature Shutdown
Slot Status Readout with Open-Drain LED Drivers
Mechanical Switch Inputs for Attention Request and Electrical Interlock
Serial Interface for Power Control, Power Status, Slot Control and Slot Status
Compatible With 33-MHz, 66-MHz, and 133-MHz Bus Speeds
Compliant To PCI And PCI-X Hot Plug Specifications
One TPS2340A Supports Two Slots

Application

Audio                                 www.ti.com/audio
Automotive                        www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                    www.ti.com/digitalcontrol
Military                               www.ti.com/military
Optical Networking            www.ti.com/opticalnetwork
Security                              www.ti.com/security
Telephony                          www.ti.com/telephony
Video & Imaging                www.ti.com/video
Wireless                            www.ti.com/wireless

Pinout

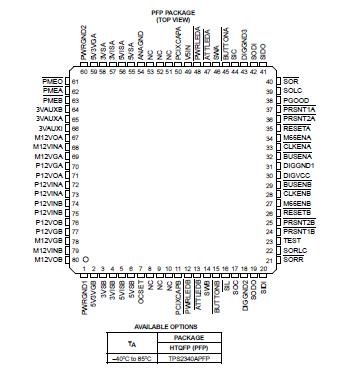

Connection Diagram

Specifications

Input voltage range: P12VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 15 V
                                 M12VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15.0 V to 0.5 V
                                 All others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 6 V
Output voltage range: P12VO, 5V3VG . . . . . . . . . . . . . . . . . . . . . 0.5 V to V_P12VIN +0.5 V
                                    P12VG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 28 V
                                    M12VO, M12VG . . . . . . . . . . . . . . . . . . . . . . . V_M12VIN0.5 V to 0.5 V
Output current pulse: P12VO (DC internally limited) . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 4 A
                                   M12VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 A
Operating virtual temperature range, T_J . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages are respect to DGND.

Description

The TPS2340A contains main supply power control, auxiliary supply power control, power FETs for 12 V, 12 V and auxiliary 3.3 V supplies,and a serial interface for communications with and control of slots. Each TPS2340A contains supply control and switching for two slots.

The main power control circuits start with all supplies off and hold all supplies off until power to the TPS2340A is valid on all positive supplies.When power is requested via the serial interface,the control circuit applies constant current to the gates of the power FETs, allowing each FET to ramp load voltage linearly. Each supply can be programmed for a desired ramp rate by selecting a gate capacitor for the power FET for that supply.The power control circuits also monitor load current and latch off that slot if the load current exceeds a programmed maximum value. In addition, once the 12-V, the 5-V, and the 3.3-V FETs are fully enhanced, the load voltage is monitored. If load voltage drops out of specification after these FETs are fully enhanced,the slot latches off. This provides another level of protection from load fault.
