TPS2331

` Single-Channel High-Side MOSFET Driver
` Input Voltage: 3 V to 13 V
` Inrush Current Limiting With dv/dt Control
` Circuit-Breaker Control With Programmable Current Limit and Transient Timer
` Power-Good Reporting With Transient Filter
` CMOS- and TTL-Compatible Enable Input
` Low 5-mA Standby Supply Current . . . Max

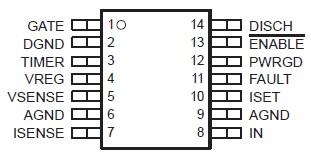

` Available in 14-Pin SOIC and TSSOP Package
` 40 to 85 Ambient Temperature Range
` Electrostatic Discharge Protection

· Hot-Swap/Plug/Dock Power Management
· Hot-Plug PCI, Device Bay
· Electronic Circuit Breaker

absolute maximum ratings over operating free-air temperature (unless otherwise noted)†
Input voltage range: V_I(IN), V_I(ISENSE), V_I(VSENSE),V_I(ISET), V_I(ENABLE) . . . . . . . . . . . . . . . 0.3 V to 15 V
Output voltage range: V_O(GATE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 30 V
                                  V_O(DISCH), V_O(PWRGD), V_O(FAULT), V_O(VREG), V_O(TIMER) . . . . . . . . .  0.3 V to 15V
Sink current range: I_GATE, I_DISCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 mA to 100 mA
                       I_PWRGD, I_TIMER, I_FAULT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 mA to 10 mA
Operating virtual junction temperature range, T_J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  40 to 100
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . .  260

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages are respect to DGND.

The TPS2330 and TPS2331 are single-channel hot-swap controllers that use external N-channel MOSFETs as high-side switches in power applications. Features of these devices, such as overcurrent protection (OCP), inrush-current control, output-power status reporting, and separation of load transients from actual load increases, are critical requirements for hot-swap applications.

The TPS2330 and TPS2331  devices incorporate undervoltage lockout (UVLO) and power-good (PG) reporting to ensure the device is off at start-up and confirm the status of the output voltage rails during operation. An internal charge pump, capable of driving multiple MOSFETs, provides enough gate-drive voltage to fully enhance the N-channel MOSFETs. The charge pump controls both the rise times and fall times (dv/dt) of the MOSFETs, reducing power transients during power up/down. The circuit-breaker functionality combines the ability to sense overcurrent conditions with a timer function; this allows designs such as DSPs, that may have high peak currents during power-state transitions, to disregard transients for a programmable period.
