Features:

` Fully Integrated VCC and VPP/VCORE Switching
` Meets PC Card Standards
` VPP/VCORE Output Programmed Independent of VCC
` TTL-Logic Compatible Inputs
` Short Circuit and Thermal Protection
` 20-Pin HTSSOP or 30-Pin SSOP (Dual With Serial Interface) Package
` 14-pin HTSSOP Package (Single With Parallel Interface)
` 95 A Typ Quiescent Current on 3.3 VIN Input (Dual With Serial Interface)
` 64 A Typ Quiescent Current on 3.3 VIN Input (Single With Parallel Interface)
` Break-Before-Make Switching
` Power On Reset
` 40 to 85 Ambient Operating Temperature Range


Application

· Notebook/Desktop Computers
· Personal Digital Assistants (PDAs)
· Digital Cameras
· Bar-code Scanners


Pinout

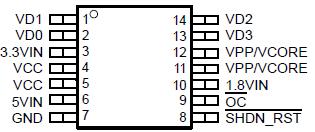

Connection Diagram


Specifications


TPS2228, TPS2221
Input voltage range for card power VI(3.3VIN)
0.3 V to 6 V
VI(5VIN)
0.3 V to 6 V
VI(1.8VIN)
0.3 V to 6 V
Logic input/output voltage
0.3 V to 6 V
Output voltage range VO(XVCC)
0.3 V to 6 V
VO(XVPP/VCORE)
0.3 V to 6 V
Continuous total power dissipation
See Dissipation Rating Table
Output current IO(XVCC)
InternallyLimited
IO(XVPP/VCORE)
Operating virtual junction temperature range, TJ
40 to 100
Storage temperature range, Tstg
55 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds
260
OC sink current
10 mA
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability


Description

The TPS2228 and TPS2221 PC card power interface switches provide an integrated power management solution for both dual and single PC card sockets. The TPS2228 is a dual-slot power interface switch for serial PCMCIA ontrollers. The TPS2221 is a single-slot power interface switch for parallel PCMCIA controllers. These power interface switches support the distribution of 3.3 V, 5 V and 1.8 V to the PC card slot while providing current-limiting protection with overcurrent reporting.
