TPS2202AI

Features:

Fully Integrated V_CC and V_pp Switching for Dual-Slot PC Card^TM Interface
P2C^TM 3-Lead Serial Interface Compatible With CardBus^TM Controllers
Meets PC Card Standards
RESET Allows System Initialization of PC Cards
12-V Supply Can Be Disabled Except During 12-V Flash Programming
Short Circuit and Thermal Protection
Space-Saving 30-Pin SSOP (DB) Package
 Compatible With 3.3-V, 5-V and 12-V PC Cards
Power Saving I_DD = 83 A Typ, I_Q = 1 A
Low rDS_(on) (160-m V_CC Switch)
Break-Before-Make Switching

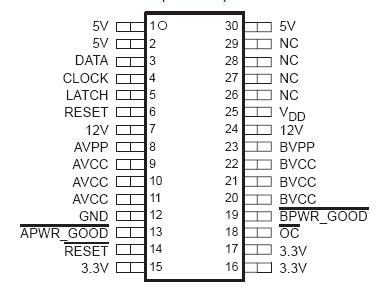

Pinout




Specifications

Supply voltage range, V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Input voltage range for card power: V_I(5V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
                                                          V_I(3.3V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_I(5V)
                                                           V_I(12V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 14 V
Logic input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Output current (each card): I_O(xVCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . internally limited
                                             I_O(xVPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . internally limited
Operating virtual junction temperature range, T_J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 150°C
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C


Description

The TPS2202AI PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, thermal protection, and power-good reporting for PC Card control are combined on a single integrated circuit (IC), using the Texas Instruments LinBiCMOS^TM process. The circuit allows the distribution of 3.3-V, 5-V, and/or 12-V card power by means of the P²C (PCMCIA Peripheral-Control) Texas Instruments nonproprietary serial interface. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability.Current-limit reporting can help the user isolate a system fault to a specific card.The TPS2202AI incorporates a reset function, selectable by one of two inputs, to help alleviate system errors.The reset function enables PC Card initialization concurrent with host platform initialization, allowing a system reset. Reset is accomplished by grounding the V_CC and V_pp (flash-memory programming voltage) outputs,which discharges residual card voltage.End equipment for the TPS2202AI includes notebook computers, desktop computers, personal digital assistants (PDAs), digital cameras, handiterminals, and bar-code scanners. The TPS2202AI is only available taped and reeled (either TPS2202AIDFLE or TPS2202AIDBLE)
