Product Details

Description



Features:

Complete USB Hub Power Solution
 Meets USB Specifications 1.1 and 2.0
Independent Thermal and Short-Circuit Protection
3.3-V Regulator for USB Hub Controller
 Overcurrent Logic Outputs
 4.5-V to 5.5-V Operating Range
CMOS- and TTL-Compatible Enable Inputs
185 A Bus-Power Supply Current
 Available in 32-Pin HTSSOP PowerPADTM
 40°C to 85°C Ambient Temperature Range



Pinout

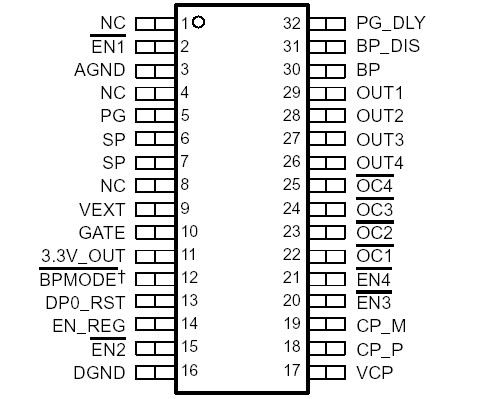

Connection Diagram


Specifications

Input voltage range: VI(BP), VI(SP), VI(ENx), VI(EN_REG), VI(BP_DIS)  . . . . . . . . .0.3 V to 6 V
                                  VI(VEXT) . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . .0.3 V to 10 V
Output voltage range: VO(OUTx)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .0.3 V to 6 V
                                    VO(3.3V_OUT), VO(PG_DLY), VO(OCx), VO(BPMODE),
                                    VO(DP0_RST), VO(PG)  . . . . . . . . . . . . . .0.3 V to VO (3.3V_OUT) 0.3 V
                                    VO(GATE), VO(CP_M), VO(CP_P), VO(VCP)  . . . . . . .. . . . .0.3 V to 15 V
Continuous output current: IO(OUTx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .internally limited
                                           IO(3.3V_OUT) . . . . . . . . . . . . . . . . . . . . . . . . . . .internally limited
Maximum output current: IO(VCP) . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30 mA
                                        IO(BPMODE) or IO(BPMODE), IO(DP0_RST), IO(PG), IO(OCx) .. .±10 mA
                                        IO(GATE), sourcing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700 µA
                                         IO(GATE), sinking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2 mA
Continuous total power dissipation  . . . . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . .40°C to 125°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .65°C to 150°C
Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds. . . . . . . . . . .260°C


Description

The TPS2070 and TPS2071 provide a complete USB hub power solution by incorporating four major functions: current-limited power switches for four ports, a 3.3-V 100-mA regulator, a 5-V regulator controller for self power, and a DP0 line control to signal attach/detach of the hub.

These TPS2070 and TPS2071 devices are designed to meet bus-powered and self-powered hub requirements. These devices are also designed for hybrid hub implementations and allow for automatic switching from self-powered mode to bus-powered mode if loss of self-power is experienced (can be disabled by applying a logic high to BP_DIS).

Each port of TPS2070 and TPS2071 has a current-limited 107-mΩ Nchannel MOSFET high-side power switch for 500 mA self-powered operation. Each port also has a current-limited 560-mΩ N-channel MOSFET high-side power switch for 100-mA bus-powered operation. All the N-channel MOSFETs are designed without parasitic diodes, preventing current backflow into the inputs. For applications not requiring a 5-V regulator controller, use the TPS2074 or TPS2075 device.
