Product Details

Description



Features:

UNIDIRECTIONAL FUNCTION
PROGRAMMABLE BREAKDOWN VOLTAGE UP TO250 V
PROGRAMMABLECURRENT LIMITATION FROM 40 mA TO 500 mA
SURGE CURRENT CAPABILITY IPP = 30A 10/1000 s

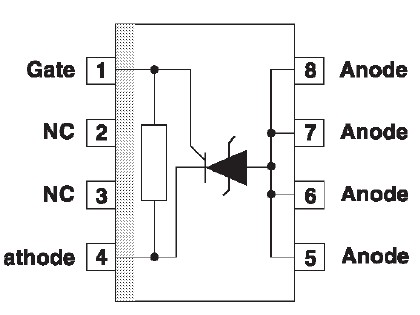

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
Ipp
 Peak pulse current (see note 1)
10/1000 s
8/20 s
30
40
75
A
ITSM
 Non repetitivesurge peak on-state current
(F = 50Hz)
tp = 10ms
t =1s
5
3.5
A
Tstg
Tj
 Storage temperature range
Maximum junction temperature
- 55 to + 150
150
°C



Description

Dedicated to sensitive telecom equipment protection, TPP25011 can provide both voltage and current triggered protection with a very tight tolerance.

The breakdown voltage of TPP25011 can be easily programmed by using an external zener diode. A multiple protection mode can be also performed when using several zener diodes, providing to each line interface an optimized protection level.The current limiting function is achieved with the use of a resistorbetween the gate and thecathode.The value of the resistor will determine the level of the desired current.
