Features:

 Low rDS(on) . . . 7 Typ
 Avalanche Energy . . . 30 mJ
 Eight Power DMOS Transistor Outputs of 100-mA Continuous Current
 250-mA Current Limit Capability
 ESD Protection . . . 2500 V
 Output Clamp Voltage . . . 33 V
 Devices Are Cascadable
 Low Power Consumption



Pinout

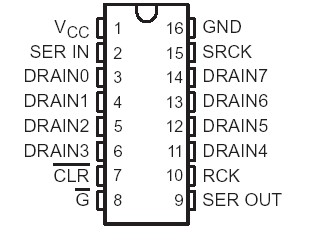

  Connection Diagram




Specifications

Logic supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Logic input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Power DMOS drain-to-source voltage, VDS (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . .33 V
Continuous source-to-drain diode anode current . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 250mA
Pulsed source-to-drain diode anode current (see Note 3) . . . . . . . . . . . . . . . . . . . .  . . . .500mA
Pulsed drain current, each output, all outputs on, ID, TC = 25°C (see Note 3)  . . . . . . . . 250mA
Continuous drain current, each output, all outputs on, ID, TC= 25°C  . . . . . . . . . . . . . . .100 mA
Peak drain current single output, TC= 25°C (see Note 3)  . . . . . . . . . . . . . . . . . . . . . .  . . 250mA
Single-pulse avalanche energy, EAS (see Figure 4)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mJ
Avalanche current, IAS (see Note 4)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 mA
Continuous total dissipation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 150°C
Operating case temperature range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 125°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . .  . . . 260°C



Description

The TPIC6C595 is a monolithic, medium-voltage, low-current power 8-bit shift register designed for use in systems that require relatively moderate load power such as LEDs. The TPIC6C595 device contains a built-in voltage clamp on the outputs for inductive transient protection. Power driver applications include relays, solenoids, and other low-current or medium-voltage loads.

This TPIC6C595 device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Data transfers through both the shift and storage registers on the rising edge of the shift register clock (SRCK) and the register clock (RCK), respectively. The TPIC6C595 device transfers data out the serial output (SER OUT) port on the rising edge of SRCK. The storage register transfers data to the output buffer when shift register clear (CLR) is high. When CLR is low, the input shift register is cleared. When output enable (G) is held high, all data in the output buffers is held low and all drain outputs are off. When G is held low, data from the storage register is transparent to the output buffers. When data in the output buffers is low, the DMOS transistor outputs are off. When data is high, the DMOS transistor outputs have sink-current capability. The SER OUT allows for cascading of the data from the shift register to additional devices.
