TPIC6B259

Features: Low rDS(on) ...5 Typical Avalanche Energy ...30 mJ Eight Power DMOS-Transistor Outputs of150-mA Continuous Current 500-mA Typical Current-Limiting Capability Output Clamp Voltage . . . 50 V Four Distinct Function Modes Low Power ConsumptionPinoutSpecificationsLogic supply voltage, V...

product image

TPIC6B259 Picture
See larger image
SeekIC No. : 004526403 Detail

TPIC6B259: Features: Low rDS(on) ...5 Typical Avalanche Energy ...30 mJ Eight Power DMOS-Transistor Outputs of150-mA Continuous Current 500-mA Typical Current-Limiting Capability Output Clamp Voltage . . ....

TPIC6B259 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPIC6B259
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Low rDS(on) ...5    Typical
Avalanche Energy ...30 mJ
Eight Power DMOS-Transistor Outputs of150-mA Continuous Current
500-mA Typical Current-Limiting Capability
Output Clamp Voltage . . . 50 V
Four Distinct Function Modes
Low Power Consumption




Pinout

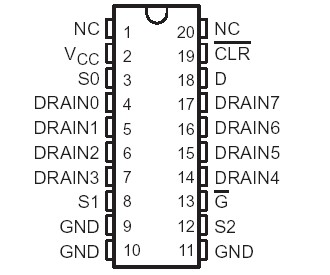

Connection Diagram


Specifications

Logic supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Logic input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Power DMOS drain-to-source voltage, VDS (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 V
Continuous source-to-drain diode anode current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 A
Pulsed source-to-drain diode anode current (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . ..2 A
Pulsed drain current, each output, all outputs on, ID, TC = 25°C (see Note 3)  . . . . . . . . . .1.1 A
Continuous drain current, each output, all outputs on, ID, TC = 25°C  . . . . . . . . . . . . . . .350 mA
Peak drain current single output, TC = 25°C (see Note 3)  . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 A
Single-pulse avalanche energy, EAS (see Figure 6)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 mJ
Avalanche current, IAS (see Note 4)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600 mA
Continuous total dissipation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 150°C
Operating case temperature range, TC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 125°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . .260°C


Description

This TPIC6B259 power logic 8-bit addressable latch controls open-drain DMOS-transistor outputs and is designed for general-purpose storage applications in digital systems. Specific uses include working registers, serial-holding registers, and decoders or demultiplexers. This is a multifunctional device capable of storing single-line data in eight addressable latches and 3-to-8 decoder or demultiplexer with active-low DMOS outputs.

Four distinct modes of operation are selectable by controlling the clear (CLR) and enable (G) inputs as enumerated in the function table. In the addressable-latch mode, data at the data-in (D) terminal is written into the addressed latch. The addressed DMOS-transistor output inverts the data input with all unaddressed DMOS-transistor outputs remaining in their previous states. In the memory mode, all DMOS-transistor outputs remain in their previous states and are unaffected by the data or address inputs. To eliminate the possibility of entering erroneous data in the TPIC6B259 latch, enable G should be held high (inactive) while the address lines are changing. In the 3-to-8 decoding or demultiplexing mode, the addressed output is inverted with respect to the D input and all otheroutputs are off. In the clear mode, all outputs are off and unaffected by the address and data inputs. When data is low for a given output, the DMOS-transistor output is off. When data is high, the DMOS-transistor output has sink-current capability.

Outputs of TPIC6B259 are low-side, open-drain DMOS transistors with output ratings of 50 V and 150-mA continuous sink-current capability. Each output provides a 500-mA typical current limit at TC = 25°C. The current limit decreases as the junction temperature increases for additional device protection.


The TPIC6B259 is characterized for operation over the operating case temperature range of 40°C to 125°C.
