Product Details

Description



Pinout

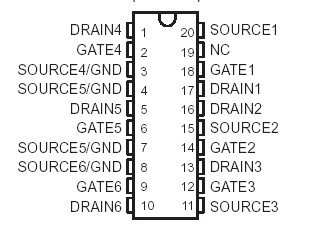

Connection Diagram


Specifications

Drain-to-source voltage, VDS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .60 V
Source-to-GND voltage (Q1, Q2, and Q3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .. . 100 V
Drain-to-GND voltage (Q1, Q2, and Q3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 V
Drain-to-GND voltage (Q4, Q5, and Q6)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .60 V
Gate-to-source voltage range, VGS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±20 V
Continuous drain current, each output, TC = 25   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 A
Continuous source-to-drain diode current, TC = 25    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 A
Pulsed drain current, Imax, TC = 25   (each output, see Note 1 and Figure 15)  . . . . . . . . . .3 A
Single-pulse avalanche energy, EAS, TC = 25   (see Figures 4, 15 and 16) . . . . . . . . . . . .18 mJ
Continuous total dissipation (see Figure 15) . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . . .. .40   to 150
Operating case temperature range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40   to 125

NOTE 1: Pulse duration = 10 ms and duty cycle = 2%.
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65   to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260


Description

The TPIC5621L is a monolithic logic-level power DMOS-transistor array that consists of six N-channel enhancement-mode DMOS transistors, three of which are configured with a common source.

The TPIC5621L is offered in a wide-body surfacemount (DW) package and is characterized for operation over the case temperature range of 40°C to 125°C.
