Product Details

Description



Pinout

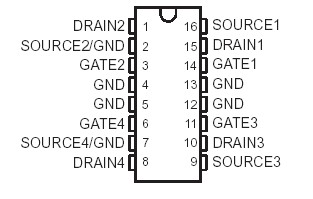

Connection Diagram

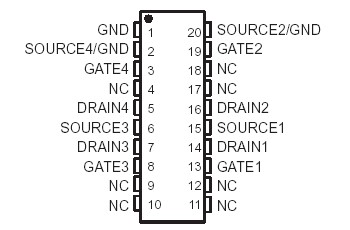

Connection Diagram


Specifications

Drain-to-source voltage, VDS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . . . . . .60 V
Source-to-GND voltage (Q1, Q3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .. . . . . . .100 V
Drain-to-GND voltage (Q1, Q3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 V
Drain-to-GND voltage (Q2, Q4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 60 V
Gate-to-source voltage, VGS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±20 V
Continuous drain current, each output, TC = 25   . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .1 A
Continuous source-to-drain diode current, TC = 25  . . . . . . . . . . . . . . . . . . . . ... .  . . . . .1 A
Pulsed drain current, each output, Imax, TC = 25  (see Note 1 and Figure 15)  .. . . . . . .3 A
Single-pulse avalanche energy, EAS, TC = 25  (see Figure 4) . . . . . . . . . . . . .  . . . . .180 mJ
Continuous total dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . .  . .40  to 150
Operating case temperature range, TC  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .40  to 125
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .65  to 150
Lead temperature 1,6 mm (1/16 inch) from case for  . . . . . . . . . . . . . . . .  . .10 seconds 260

NOTE 1: Pulse duration = 10 ms and duty cycle = 2%.


Description

The TPIC5424L is a monolithic logic-level power DMOS array that consists of four electrically isolated N-channel enhancement-mode DMOS transistors, two of which are configured with a common source.

The TPIC5424L is offered in a 16-pin thermally enhanced dual-in-line (NE) package and a 20-pin wide-body surface-mount (DW) package. The TPIC5424L is characterized for operation over the case temperature range of 40°C to 125°C.
