Description



Pinout

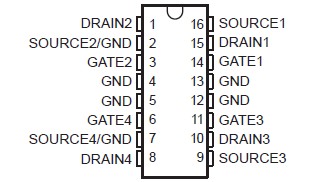

Connection Diagram

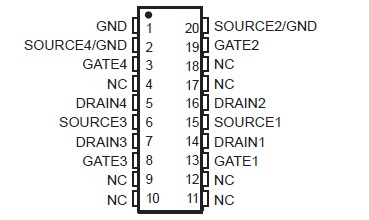

Connection Diagram


Specifications

Drain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 V
Source-to-GND voltage (Q1, Q3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . 100 V
Drain-to-GND voltage (Q1, Q3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 V
Drain-to-GND voltage (Q2, Q4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 V
Gate-to-source voltage range, VGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 V to 18 V
Continuous drain current, each output, TC = 25°C: NE package . . . . . . . . . . . . . . . . . . . . . . . .  . 1.5 A
                                                                                DW package . . . . . . . . . . . . . . . . . . .. . . . . . . . . 1 A
Continuous source-to-drain diode current, TC = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 A
Pulsed drain current, each output, Imax, TC = 25°C (see Note 1 and Figure 15) . . . . . . . . . . . . . . . 3 A
Continuous gate-to-source zener-diode current, TC = 25°C . . . . . . . . . . . . . . . . . . . . . . . . .. . ±50 mA
Pulsed gate-to-source zener-diode current, TC = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ±500 mA
Single-pulse avalanche energy, EAS, TC = 25°C (see Figures 4 and 16) . . . . . . . . . . . . . . .  . . . 180 mJ
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . See Dissipation Rating Table
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40  to 150
Operating case temperature range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 40  to 125
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 65  to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . .  . . 260

1: Pulse duration = 10 ms, duty cycle = 2%


Description

The TPIC5421L is a monolithic gate-protected logic-level power DMOS array that consists of four electrically isolated N-channel enhancementmode DMOS transistors, two of which are configured with common source. Each transistor features integrated high-current zener diodes (ZCXa and ZCXb) to prevent gate damage in the event that an overstress condition occurs. These TPIC5421L zener diodes also provide up to 4000 V of ESD protection when tested using the human-body model of a 100-pF capacitor in series with a 1.5-kW resistor.

The TPIC5421L is offered in a 20-pin wide-body surface-mount (DW) package and a 16-pin thermally-enhanced dual in-line (NE) package and is characterized for operation over the case temperature of 40  to 125 .
