TPIC5404

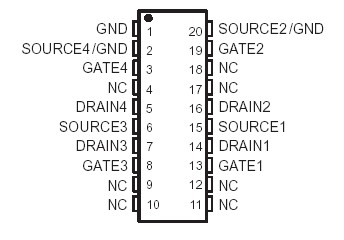

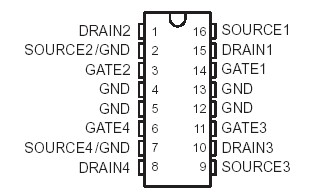

Pinout





Specifications

Drain-to-source voltage, V_DS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 60 V
Source-to-GND voltage (Q1, Q3)  . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . .100 V
Drain-to-GND voltage (Q1, Q3) . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .. . 100 V
Drain-to-GND voltage (Q2, Q4)  . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . .. . .60 V
Gate-to-source voltage range, V_GS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .±20
Continuous drain current, each output, T_C = 25 : DW package  . . . . . . . . . . .. .   .1.7 A
                                                                                   NE package  . . . . . . . . . . . .. . . .2 A
Continuous source-to-drain diode current (NE package)  . . . . . . . . . . . . . . . . . . . .. . .2 A
Pulsed drain current, each output, T_C = 25  (see Note 1 and Figure 15)  . . . ..  . . .10 A
Single-pulse avalanche energy, T_C = 25  (see Figures 4 and 16). . . . . . .. . . . . . . 21 mJ
Continuous total power dissipation . . . . . . . . . . . . . . . . .  . .See Dissipation Rating Table
Operating virtual junction temperature range, T_J  . . . . . . . . . . . . . . . . . . .40  to 150
Operating case temperature range, T_C  . . . . . . . . . . . . . . . . . . . . . . . . . . .40  to 125
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .65  to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . .260

NOTE 1: Pulse duration = 10 ms, duty cycle = 2%


Description

The TPIC5404 is a monolithic power DMOS array that consists of four electrically isolated N-channel enhancement-mode DMOS transistors, two of which are configured with a common source.

The TPIC5404 is offered in a 16-pin thermally enhanced dual-in-line (NE) package and a 20-pin wide-body surface-mount (DW) package. The TPIC5404 is characterized for operation over the case temperature range of 40°C to 125°C.
