TPIC5403

PinoutSpecificationsDrain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .60 VSource-to-GND voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 VDrain-to-GND voltage . . . . . ...

product image

TPIC5403 Picture
See larger image
SeekIC No. : 004526389 Detail

TPIC5403: PinoutSpecificationsDrain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .60 VSource-to-GND voltage . . . . . . . . . . . . . . . . ....

TPIC5403 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPIC5403
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

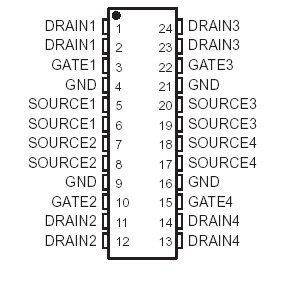

Connection Diagram


Specifications

Drain-to-source voltage, VDS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .. .60 V
Source-to-GND voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . 100 V
Drain-to-GND voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 V
Gate-to-source voltage range, VGS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 V to 18 V
Continuous drain current, each output, TC = 25  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2.25 A
Continuous source-to-drain diode current, TC = 25   . . . . . . . . . . . . . . . . . . . . . . . . . .2.25 A
Pulsed drain current, each output, Imax, TC = 25  (see Note 1 and Figure 15) . . . .  .11.25 A
Continuous gate-to-source zener diode current, TC = 25 . . . . . . . . . . . . . . . . . . . . . ±50 mA
Pulsed gate-to-source zener diode current, TC = 25  . . . . . . . . . . . . . . . . . . . . . . . .±500 mA
Single-pulse avalanche energy, EAS, TC = 25  (see Figures 4, 15, and 16) . . . . . . . . .17.2 mJ
Continuous total power dissipation, TC = 25  (see Figure 15)  . . . . . . . . . . . . . . . . . . .1.39 W
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . .  40  to 150
Operating case temperature range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40  to 125
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65  to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . .. .260

NOTE 1: Pulse duration = 10 ms, duty cycle = 2%


Description

The TPIC5403 is a monolithic gate-protected power DMOS array that consists of four independent electrically isolated N-channel enhancement-mode DMOS transistors. Each transistor features integrated high-current zener diodes (ZCXa and ZCXb) to prevent gate damage in the event that an overstress condition occurs. These zener diodes also provide up to 4000 V of ESD protection when tested using the human-body model of a 100-pF capacitor in series with a 1.5-kW resistor.

The TPIC5403 is offered in a 24-pin wide-body surface-mount (DW) package and is characterized for operation over the case temperature range of 40°C to 125°C.
