TPIC3302

Features: • Low rDS(on) . . . 0.4 Typ• High-Voltage Outputs . . . 60 V• Pulsed Current . . . 5 A Per Channel• Fast Commutation SpeedPinoutSpecificationsDrain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

product image

TPIC3302 Picture
See larger image
SeekIC No. : 004526370 Detail

TPIC3302: Features: • Low rDS(on) . . . 0.4 Typ• High-Voltage Outputs . . . 60 V• Pulsed Current . . . 5 A Per Channel• Fast Commutation SpeedPinoutSpecificationsDrain-to-source voltag...

TPIC3302 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPIC3302
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low rDS(on) . . . 0.4 Typ
• High-Voltage Outputs . . . 60 V
• Pulsed Current . . . 5 A Per Channel
• Fast Commutation Speed

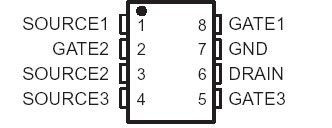

Pinout

Connection Diagram


Specifications

Drain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 V
Source-to-GND voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .100 V
Drain-to-GND voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .100 V
Gate-to-source voltage, VGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 V
Continuous drain current, each output, all outputs on, TC = 25°C . . . . . . . . . . . . . . . . . . .  . . . .1 A
Continuous source-to-drain diode current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .1 A
Pulsed drain current, each output, TC = 25°C (see Note 1 and Figure 6). . . . . . . . . . . . .  . . . . . 5 A
Single-pulse avalanche energy, TC = 25°C, EAS (see Figure 4)  . . . . . . . . . . . . . . .  . . . . . . . . .9 mJ
Continuous total power dissipation at (or below) TC = 25°C  . . . . . . . . . . . . . . . . . . . . . . . .0.95 W
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 150°C
Operating case temperature range, TC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .40°C to 125°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . .. . 260°C


Description

The TPIC3302 is a monolithic power DMOS array that consists of three electrically isolated N-channel enhancement-mode DMOS transistors configured with a common drain and open sources. The TPIC3302 is offered in a standard eight-pin small-outline surface-mount (D) package.

The TPIC3302 is characterized for operation over the case temperature range of 40°C to 125°C.
