Product Details

Description



Features:

 Low rDS(on) . . . 0.3 W Typ
 High Output Voltage . . . 60 V
 Pulsed Current . . . 6 A Per Channel
 Avalanche Energy Capability . . . 36 mJ
 Input Transient Protection . . . 2000 V


Pinout

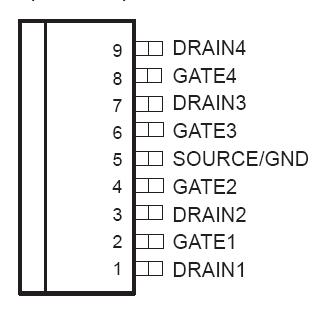

Connection Diagram


Specifications

Drain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 V
Gate-to-source voltage, VGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 V to 18 V
Continuous drain current, each output, all outputs on, TC = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5 A
Pulsed drain current, each output, IOmax, TC = 25°C (see Note 1 and Figure 7) . . . . . . . . . . . . . . . . . . . . 6 A
Continuous gate-to-source zener diode current, TC = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA
Pulsed gate-to-source zener diode current, TC = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±250 mA
Single-pulse avalanche energy, EAS, TC = 25°C (see Figures 4 and 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 mJ
Continuous total power dissipation at (or below) TA = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7 W
Power dissipation at (or below) TC = 75°C, all outputs on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 W
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 150°C
Operating case temperature range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  40°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 125°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: Pulse duration = 10 ms, duty cycle = 2%


Description

The TPIC2401 is a monolithic power DMOS array that consists of four electrically isolated N-channel enhancement-mode DMOS transistors configured with a common source and open drains. Each transistor features integrated high-current zener diodes to prevent gate damage in the event that an overstress condition occurs. These zener diodes also provide up to 2000 V of ESD protection when tested using the human-body model.

The TPIC2401 is offered in a 9-pin PowerFLEXE (KTA) package and is characterized for operation over the case temperature range of 40°C to 125°C.
