Product Details

Description



Pinout

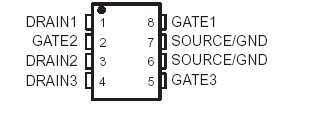

Connection Diagram


Specifications

Drain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . 60 V
Gate-to-source voltage, VGS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .±20 V
Continuous drain current, each output, all outputs on, TC = 25 . . . . . . . . . . . . . . .  . . . . 1 A
Pulsed drain current, each output, TC = 25  (see Note 1 and Figure 6)  . . . . . . . . . . . . . .5 A
Single-pulse avalanche energy, TC = 25 , EAS (see Figures 4 and 16) . . . . . . . . . . . . . .9 mJ
Continuous total power dissipation at (or below) TC = 25   . . . . . . . . . . . . . . . . . . .  .0.95 W
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . ..40  to 150
Operating case temperature range, TC  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .40  to 125
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65  to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . .260

NOTE 1: Pulse duration = 10 ms, duty cycle = 2%


Description

The TPIC2302 is a monolithic power DMOS array that consists of three electrically isolated N-channel enhancement-mode DMOS transistors configured with a common source and open drains. The TPIC2302 is offered in a standard 8-pin small-outline surface-mount (D) package.

The TPIC2302 is characterized for operation over the case temperature range of 40°C to 125°C.
