Product Details

Description



Pinout

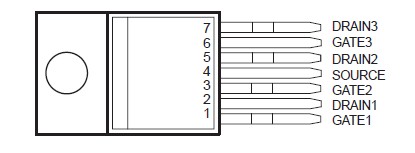

Connection Diagram


Specifications

Drain-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 V
Gate-source voltage, VGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 V
Continuous source-drain diode current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 7.5 A
Pulsed drain current, each output, all outputs on, ID (see Note 1) . . . . . . . . . . . . . . . . . . . . . . .  . 15 A
Continuous drain current, each output, all outputs on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 7.5 A
Single-pulse avalanche energy, EAS (see Figure 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 120 mJ
Continuous power dissipation at (or below) TA = 25°C (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . 2 W
Continuous power dissipation at (or below) TC = 75°C, all outputs on (see Note 2) . . . . . . . . . . 50 W
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  40  to 150
Operating case temperature range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40  to 125
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40  to 125
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . .  . 260

1. Pulse duration = 10 ms, duty cycle = 6%
2. For operation above 25°C free-air temperature, derate linearly at the rate of 16 mW/°C. For operation above 75°C case temperature,
and with all outputs conducting, derate linearly at the rate of 0.66 W/°C. To avoid exceeding the design maximum virtual junction
temperature, these ratings should not be exceeded.


Description

The TPIC2301 is a monolithic power DMOS array that consists of three independent N-channel enhancement-mode DMOS transistors connected in a common-source configuration with open drains.
