TPIC1501A

Features: Low rDS(on): 0.1 Typ (Full H-Bridge) 0.4 Typ (Triple Half H-Bridge)Pulsed Current: 12 A Per Channel (Full H-Bridge) 6 A Per Channel (Triple Half H-Bridge)Matched Sense Transistor for Class A-B Linear OperationFast Commutation SpeedPinoutSpecificationsSupply-to-GND voltage . . . . . . ....

product image

TPIC1501A Picture
See larger image
SeekIC No. : 004526349 Detail

TPIC1501A: Features: Low rDS(on): 0.1 Typ (Full H-Bridge) 0.4 Typ (Triple Half H-Bridge)Pulsed Current: 12 A Per Channel (Full H-Bridge) 6 A Per Channel (Triple Half H-Bridge)Matched Sense Transistor for Cla...

TPIC1501A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPIC1501A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Low rDS(on): 0.1 Typ (Full H-Bridge) 0.4 Typ (Triple Half H-Bridge)
 Pulsed Current: 12 A Per Channel (Full H-Bridge) 6 A Per Channel (Triple Half H-Bridge)
 Matched Sense Transistor for Class A-B Linear Operation
 Fast Commutation Speed


Pinout

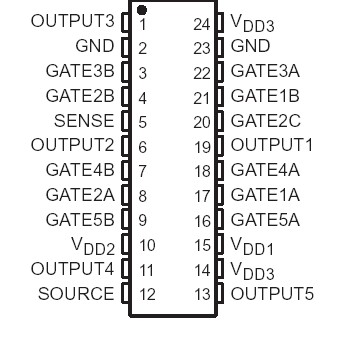

Connection Diagram


Specifications

Supply-to-GND voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .20 V
Source-to-GND voltage (Q3A, Q4A, Q5A)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .20 V
Output-to-GND voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 V
Sense-to-GND voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .20 V
Gate-to-source voltage range, VGS (Q1A, Q1B, Q2A, Q2B, Q3A, Q3B, Q4A, Q4B, Q5A, Q5B) . . .. . ±20 V
Gate-to-source voltage range, VGS (Q2C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .0.7 V to 6 V
Continuous drain current, each output (Q1A, Q1B, Q2A, Q2B) . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .3 A
Continuous drain current, each output (Q3A, Q3B, Q4A, Q4B, Q5A, Q5B)  . . . . . . . . . . . . . . . . . . .1.5 A
Continuous drain current (Q2C)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 mA
Continuous source-to-drain diode current (Q1A, Q1B, Q2A, Q2B)  . . . . . . . . . . . . . . . . . . . .  . . . . . .3 A
Continuous source-to-drain diode current (Q3A, Q3B, Q4A, Q4B, Q5A, Q5B) . . . . . . . . . . . . . . . . .1.5 A
Continuous source-to-drain diode current (Q2C)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 mA
Pulsed drain current, each output, Imax (Q1A, Q1B, Q2A, Q2B) (see Note 1 and Figure 24)  . . .. . .12 A
Pulsed drain current, each output, Imax (Q3A, Q3B, Q4A, Q4B, Q5A, Q5B)
                 (see Note 1 and Figure 25). . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .      6 A
Pulsed drain current, Imax (Q2C) (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .  . .60 mA
Continuous total power dissipation, TC = 70°C (see Note 2 and Figures 24 and 25)  . . . .   . . . .2.86 W
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . . . . . .. . .40°C to 150°C
Operating case temperature range, TC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .40°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . .  . . . . . .260°C


Description

The TPIC1501A is a monolithic power array that consists of ten electrically isolated N-channel enhancement-mode power DMOS transistors, four of which are configured as a full H-bridge and six as a triple half H-bridge. The lower stage of the full H-bridge features an integrated sense FET to allow biasing of the bridge in class A-B operation.

The TPIC1501A is offered in a 24-pin wide-body surface-mount (DW) package and is characterized for operation over the case temperature range of 40°C to 125°C.
