Product Details

Description



Features:

 Configured for 3-Phase Brushless Motor Drive
 Low rDS(on) . . . 0.25 W Typ
 High Voltage Output . . . 30 V
 Pulsed Current . . . 12 A Per Channel
 Input Transient and ESD Protection
 Compatible With High-Side and Low-Side Current Sense Resistors

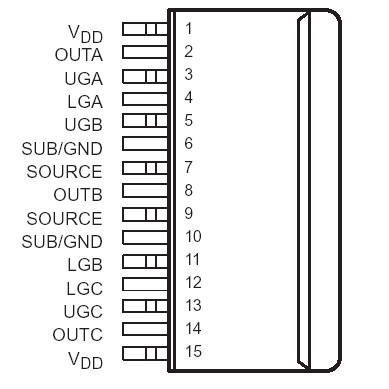

Pinout

Connection Diagram


Specifications

Drain-to-source voltage, VDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .30 V
Output-to-GND voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 V
SOURCE-to-SUB/GND voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 20 V
Gate-to-source voltage range, VGS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 20 V
Continuous output current, each output, all outputs on, TC = 25°C  . . . . . . . . . . . . . . . . . . .. . .3 A
Continuous source-to-drain diode current, TC = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 A
Pulsed output current, each output, Imax, TC = 25°C (see Note 1 and Figure 14)  . . . . . . . . . .12 A
Continuous VDD and SOURCE current, TC = 25°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 A
Pulsed VDD and SOURCE current, TC = 25°C (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . .. . . . .12 A
Continuous total dissipation, TC = 25°C (see Note 2 and Figure 14) . . . . . . . . . . . . . . . .  . . .13.9 W
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 150°C
Operating case temperature range, TC  . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .40°C to 125°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . . . . .260°C


Description

The TPIC1310 is a monolithic gate-protected power DMOS array that consists of six electrically isolated N-channel enhancement-mode DMOS transistors configured as a three-half H-bridge.

When suitably heat sunk, the TPIC1310 can drive motors requiring 2.5 A of phase current. The DMOS transistors are immune to second breakdown effects and current crowding, problems often associated with bipolar transistors.

The TPIC1310 is offered in 15-pin through-hole (KTS) and surface-mount (KTR) PowerFLEXETM packages and is characterized for operation over the case temperature range of 40°C to 125°C.
