Product Details

Description



Pinout

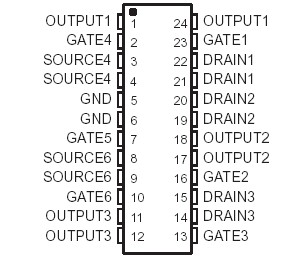

Connection Diagram


Specifications

Drain-to-GND voltage, VDG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 V
Drain-to-source voltage, VDS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 V
Output-to-GND voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .60 V
SOURCE4, SOURCE6-to-GND voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 V
Gate-to-source voltage range, VGS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 V to 18 V
Continuous drain current, each output, TC = 25   . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .2.25 A
Continuous source-to-drain diode current, TC = 25   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.25 A
Pulsed drain current, each output, Imax, TC = 25  (see Note 1 and Figure 15) . . . . . . . . 11.25 A
Continuous gate-to-source zener-diode current, TC = 25  . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Pulsed gate-to-source zener-diode current, TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . ±500 mA
Single-pule avalanche energy, EAS, TC = 25  (see Figures 4, 15, and 16) . . . . . . . . . . . . .17.2 mJ
Continuous total dissipation, TC = 25  (see Figure 15) . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.39 W
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . . .  . . .40  to 150
Operating case temperature range, TC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .40  to 125
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65  to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . .260

NOTE 1: Pulse duration = 10 ms, duty cycle = 2%


Description

The TPIC1301 is a monolithic gate-protected power DMOS array that consists of six electrically isolated N-channel enhancement-mode DMOS transistors configured as three half H-bridges. Each transistor features integrated high-current zener diodes (ZCXa and ZCXb) to prevent gate damage in the event that an overstress condition occurs. These TPIC1301 zener diodes also provide up to 4000 V of ESD protection when tested using the human-body model of a 100-pF capacitor in series with a 1.5-kW resistor.

The TPIC1301 is offered in a 24-pin wide-body surface-mount (DW) package and is characterized for operation over the case temperature range of 40°C to 125°C.
