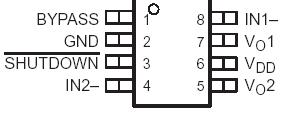

PinoutSpecificationsSupply voltage, VCC to VCC+ . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . .4 VInput voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 0.3 V to VDD + 0.3 VContinuous total power dissipation . . . . . . . . . . . . . . . . . . . ...
TPA6100A2: PinoutSpecificationsSupply voltage, VCC to VCC+ . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . .4 VInput voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . .....
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The TPA6100A2 is a stereo audio power amplifier packaged in either an 8-pin SOIC package or an 8-pin MSOP package capable of delivering 50 mW of continuous RMS power per channel into 16-W loads. Amplifier gain is externally configured by a means of three resistors per input channel and does not require external compensation for settings of 1 to 10.
The TPA6100A2 is optimized for battery applications because of its low supply current, shutdown current, and THD+N. To obtain the low-supply voltage range, the TPA6100A2 biases BYPASS to VDD/4. A resistor with a resistance equal to RF must be added from the inputs to ground to allow the output to be biased at VDD/2. When driving a 16-W load with 45 mW output power from 3.3 V, THD+N is 0.04% at 1 kHz, and less than 0.2% across the audio band of 20 Hz to 20 kHz. For 28 mW into 32-W loads, the THD+N is reduced to less than 0.03% at 1 kHz, and is less than 0.2% across the audio band of 20 Hz to 20 kHz.
