Product Details

Description



Features:

`Ground-Referenced Outputs EliminateDC-Bias Voltages on Headphone Ground Pin
        No Output DC-Blocking Capacitors
` Reduced Board Area
` Reduced Component Cost
` Improved THD+N Performance
` No Degradation of Low-Frequency Response Due to Output Capacitors
`Wide Power Supply Range: 1.8 V to 4.5 V
`80-mW/Ch Output Power into 16- at 4.5 V
` Independent Right and Left Channel Shutdown Control
` Short-Circuit and Thermal Protection
` Pop Reduction Circuitry
` Space Saving Pb-Free Packages
      20-pin, 4 mm * 4 mm ThinQFN
      16-ball, 2 mm * 2 mm WCSP(Product Preview)


Application

· Notebook Computers
· CD / MP3 Players
· Smart Phones
· Cellular Phones
· PDAs

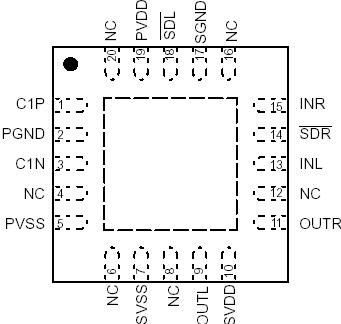

Pinout

Connection Diagram


Specifications



UNIT

  Supply voltage, AVDD, PVDD

-0.3 to 5.5

V

VI Input voltage

-0.3 to VDD + 0.3

V

  Output Continuous total power dissipation

See Dissipation Rating Table

TA Operating free-air temperature range

- 40 to 85

°C

TJ Operating junction temperature range

- 40 to 150

°C

Tstg Storage temperature range

-65 to 85

°C

  Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds

260

°C




Description

The TPA4411 is a stereo headphone driver designed to allow the removal of the output dc-blocking capaci- tors for reduced component count and cost.It is ideal for small portable electronics where size and cost are critical design parameters.

The TPA4411 is capable of driving 80 mW into a 16-W load at 4.5 V. It has a fixed gain of -1.5 V/V and headphone outputs have ±8-kV IEC ESD protection. It has independent shut- down control for the right and left audio channels.

The TPA4411 is available in a 20-pin, 4 mm × 4 mm ThinQFN package.
