TPA302

·300-mW Stereo Output
·PC Power Supply Compatibility 5-V and 3.3-V Specified Operation
·Shutdown Control
·Internal Mid-Rail Generation
·Thermal and Short-Circuit Protection
·Surface-Mount Packaging
·Functional Equivalent of the LM4880

Supply voltage, V_DD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .6 V
Input voltage , V_I  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .0.3 V to V_DD + 0.3 V
Continuous total power dissipation  . . . . . . . . . . . . . . . . . . . .Internally Limited (See Dissipation Rating Table)
Operating junction temperature range, T_J  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 150° C
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C

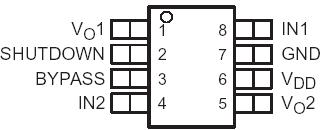

The TPA302 is a stereo audio power amplifier capable of delivering 250 mW of continuous average power into an 8- load at less than 0.06% THD+N from a 5-V power supply or up to 300 mW at 1% THD+N. The TPA302 has high current outputs for driving small unpowered speakers at 8 W or headphones at 32 . For headphone applications driving 32- loads, the TPA302 delivers 60 mW of continuous average power at less than 0.06% THD+N. The amplifier features a shutdown function for power-sensitive applications as well as internal thermal and short-circuit protection. The amplifier TPA302 is available in an 8-pin SOIC (D) package that reduces board space and facilitates automated assembly.
