TPA0142

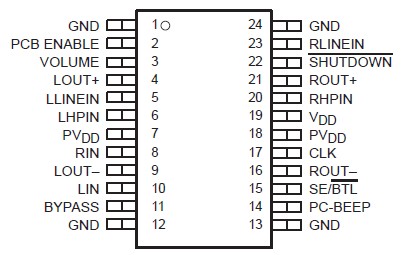

The TPA0142 is a stereo audio power amplifier in a 24-pin TSSOP thermally enhanced package capable of elivering 2 W of continuous RMS power per channel into 3- loads. This device minimizes the number of xternal components needed, which simplifies the design and frees up board space for other features. When riving 1 W into 8- speakers, the TPA0142 has less than 0.22% THD+N across its specified frequency range. ncluded within this device is integrated depop circuitry that virtually eliminates transients that cause noise in he speakers.

Amplifier gain is controlled by a dc voltage input on the VOLUME terminal. There are 31 discrete steps covering he range of 20 dB (maximum volume setting) to 40 dB (minimum volume setting) in 2 dB steps. When the OLUME terminal exceeds 3.54 V, the device is muted. An internal input MUX allows two sets of stereo inputs o the amplifier. In notebook applications, where internal speakers are driven as BTL and the line outputs (often eadphone drive) are required to be SE, the TPA0142 automatically switches into SE mode when the SE/BTLinput is activated, and this effectively reduces the gain by 6 dB.

The TPA0142 consumes only 20 mA of supply current during normal operation. A miserly shutdown mode educes the supply current to less than 150 A.

The PowerPAD package (PWP) delivers a level of thermal performance that was previously achievable only n TO-220-type packages. Thermal impedances of approximately 35°C/W are truly realized in multilayer PCB pplications. This allows the TPA0142 to operate at full power into 8- loads at ambient temperatures of 85°C.
