Product Details

Description



Features:

`Compatible With PC 99 Desktop Line-Out Into 10-k Load
`Compatible With PC 99 Portable Into 8- Load
`Internal Gain Control, Which Eliminates External Gain-Setting Resistors
`DC Volume Control From +20 dB to 40 dB
`2-W/Ch Output Power Into 3- Load
`PC-Beep Input
`Depop Circuitry
`Stereo Input MUX
`Fully Differential Input
`Low Supply Current and Shutdown Current
`Surface-Mount Power Packaging
`24-Pin TSSOP PowerPADE™



Pinout

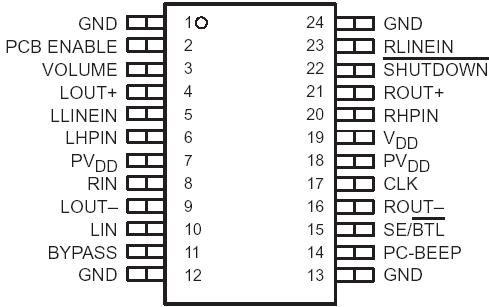

  Connection Diagram


Specifications

Supply voltage, VDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .  . . . . . . . . . . . . . . . .6 V
Input voltage, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .  . .0.3 V to VDD +0.3 V
Continuous total power dissipation  . . . . . . . . . . . . . . . . . . . . internally limited (see Dissipation Rating Table)
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .40°C to 85°C
Operating junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .40°C to 150°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .260°C




Description

The TPA0132 is a stereo audio power amplifier in a 24-pin TSSOP thermally enhanced package capable of delivering 2 W of continuous RMS power per channel into 3- loads. This device minimizes the number of external components needed, which simplifies the design and frees up board space for other features. When driving 1 W into 8- speakers, the TPA0132 has less than 0.4% THD+N across its specified frequency range.

Included within TPA0132 is integrated depop circuitry that virtually eliminates transients that cause noise in the speakers.

Amplifier gain is controlled by means of a dc voltage input on the VOLUME terminal. There are 31 discrete steps covering the range of +20 dB (maximum volume setting) to 40 dB (minimum volume setting) in 2 dB steps. When the VOLUME terminal exceeds 3.54 V, the device is muted. An internal input MUX allows two sets of stereo inputs to the amplifier. In notebook applications, where internal speakers are driven as BTL and the line outputs (often headphone drive) are required to be SE, the TPA0132 automatically switches into SE mode when the SE/BTL input is activated, and this effectively reduces the gain by 6 dB.

The TPA0132 consumes only 10 mA of supply current during normal operation. A miserly shutdown mode is included that reduces the supply current to less than 150 A.

The PowerPAD package (PWP) delivers a level of thermal performance that was previously achievable only in TO-220-type packages. Thermal impedances of approximately 35°C/W are readily realized in multilayer PCB applications. This allows the TPA0132 to operate at full power into 8- loads at ambient temperatures of 85°C.
