TP3094

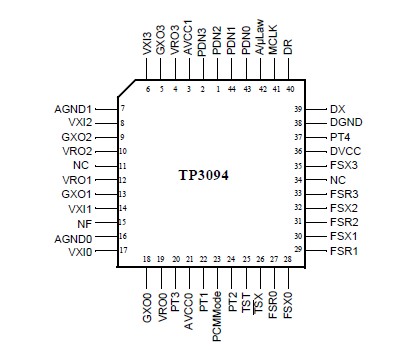

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales ffice/Distributors for availability and specifications.
V_CC to DGND................................. 7V
Voltage at any digital inputs or outputs .......V_CC +0.3V to DGND -0.3V
Voltage at any analog inputs or outputs .......V_CC +0.3V to AGND-0.3V
Storage temperature range .................-65^oC to +150^oC
Lead temperature(Soldering, 10 Sec) ..................260^oC
ESD (human body model)........................ 2000 V
Latch-up immunity on any pin..................... 200 mA

The TP3094 is a monolithic PCM Codec and Filter device implemented using a digital signal processing architecture. It provides four voice channels, combining transmit bandpass and receive low pass channel filters with companding Alaw or m-law PCM encoders and decoders. The device is fabricated using National's advanced CMOS process.

The TP3094 device includes anti-aliasing filters and sigma- delta converters dedicated to each channel, and by a common signal processing unit which performs all the remaining filtering and processing for the four channels.

The TP3094 includes a flexible PCM digital interface, which allows the device to be connected to PCM busses of different formats. It can also be connected with other TP3094 devices in a cascade fashion, for a system with up to 128 POTS interfaces (when a 2.048MHz PCM bus is used).
