TP3064

Features: · Complete CODEC and filtering system including:Transmit high-pass and low-pass filteringReceive low-pass filter with sin x/x correctionActive RC noise filtersm-law or A-law compatible COder and DECoderInternal precision voltage referenceSerial I/O interfaceInternal auto-zero circuitryRe...

product image

TP3064 Picture
See larger image
SeekIC No. : 004525850 Detail

TP3064: Features: · Complete CODEC and filtering system including:Transmit high-pass and low-pass filteringReceive low-pass filter with sin x/x correctionActive RC noise filtersm-law or A-law compatible COd...

TP3064 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TP3064
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Complete CODEC and filtering system including:
Transmit high-pass and low-pass filtering
Receive low-pass filter with sin x/x correction
Active RC noise filters
m-law or A-law compatible COder and DECoder
Internal precision voltage reference
Serial I/O interface
Internal auto-zero circuitry
Receive push-pull power amplifiers
·m-lawÐTP3064
·A-lawÐTP3067
·Designed for D3/D4 and CCITT applications
·g5V operation
·Low operating powerÐtypically 70 mW
·Power-down standby modeÐtypically 3 mW
·Automatic power-down
·TTL or CMOS compatible digital interfaces
·Maximizes line interface card circuit density




Pinout

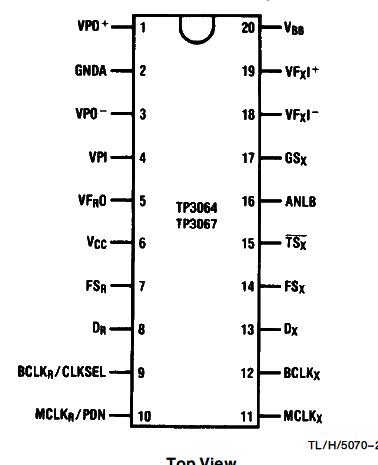

Connection Diagram




Specifications

Temperature Min 0 deg C
Temperature Max 70 deg C
View Using Catalog





Description

The TP3064 (µ-law) and TP3067 (A-law) are monolithic PCM CODEC/Filters utilizing the A/D and D/A conversion architecture shown in Figure 1, and a serial PCM interface. The devices are fabricated using National's advanced double-poly CMOS process (microCMOS).

Similar to the TP305X family, these devices feature an additional Receive Power Amplifier to provide push-pull balanced output drive capability. The receive gain of TP3064 can be adjusted by means of two external resistors for an output level of up to ±6.6V across a balanced 600 Ohm load. Also included is an Analog Loopback switch and a TSX# output.See also AN-370, "Techniques for Designing with CODEC/Filter COMBO Circuits."
