Product Details

Description



Features:

Fully Integrated xVCC and xVPP Switching
xVPP Programmed Independent of xVCC
3.3-V, 5-V, and/or 12-V Power Distribution
Low rDS(on)   (60-m  xVCC Switch Typical)
Short Circuit and Thermal Protection
150-A (maximum) Quiescent Current
Standby Mode: 50-mA Current Limit (Typ)
12-V Supply Can Be Disabled
3.3-V Low-Voltage Mode
Meets PC Card(TM) Standards
TTL-Logic Compatible Inputs
Available in 30-Pin SSOP (DB) and 32-Pin
TSSOP (DAP) Packages
Break-Before-Make Switching
Internal Power-On Reset

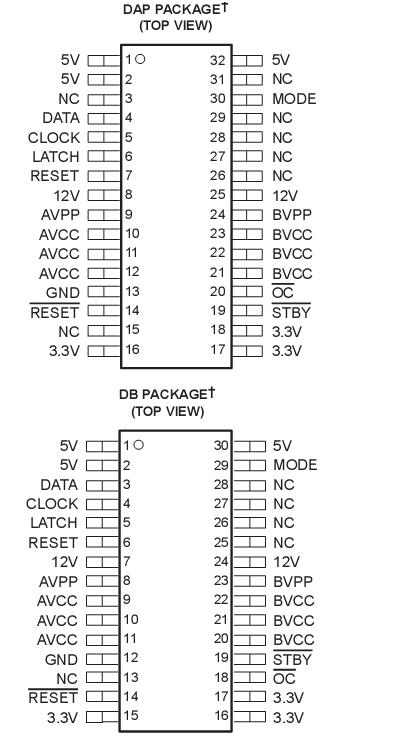

Pinout

  Connection Diagram


Specifications

Input voltage range for card power: VI(3.3V)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to 6 V
                                                          V I(5V)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  0.3 V to 6 V
                                                           VI(12V)    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  0.3 V to 14 V
Logic input voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .. .  0.3 V to 6 V
Output voltage range: V O(xVCC)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . ..  0.3 V to 6 V
                                     V O(xVPP)   . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to 14 V
Continuous total power dissipation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  See Dissipation Rating Table
Output current: IO(xVCC)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . Internally limited.
                          IO(xVPP)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . ............ . Internally limited

Operating virtual junction temperature range, TJ   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40  to 125
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .55  to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  260°C




Description

The TP2216DAP PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting,and thermal protection for PC Card control are combined on a single integrated circuit. This TP2216DAP allows the distribution of 3.3-V, 5-V, and/ or 12-V power to the card. The current-limiting
feature eliminates the need for fuses. Current- limit reporting can help the user isolate a system fault.

The TP2216DAP features a 3.3-V low-voltage mode that allows for 3.3-V switching without the need for 5-V power. This feature facilitates low-power system designs such as sleep modes where only 3.3 V is available. This TP2216DAP also has the ability to program the xVPP outputs independent of the xVCC outputs. A standby mode that changes all output-current limits to 50 mA (typical) has been incorporated.

End-equipment applications for the TP2216DAP include: notebook computers, desktop computers, personal digital assistants (PDAs), digital cameras, and bar-code scanners.

The TP2216DAP is backward-compatible with the TPS2202A and TPS2206.
