TNETX15AE

Provides up to 8K-Address Matching System
Provides Glueless External-AddressMatch (EAM) Interface to theTNETX3150/TNETX3150A/TNETX3100
Uses Standard Off-the-Shelf 15-ns SRAMs
EEPROM Interface for Auto-Configuration,No CPU Needed
Automatic Aging Through User-Selectable Aging (AGE) Threshold
Fabricated in 3.3-V Low-Voltage Technology
Requires 3.3-V and 5-V Power Supplies
5-V Tolerant I/Os
Provides Direct Input/Output (DIO) Interface for Management Access and Control (MAC) of the Address-Lookup Table
Address Lookups, Adds, and Deletes Are Automatically Performed in Hardware
User-Selectable Interrupts Simplify the Management Operations
Secure Addresses From Changing Ports
MII Data I/O (MDIO) PHY Management Interface
Management Access to Statistic Registers
JTAG Compliant

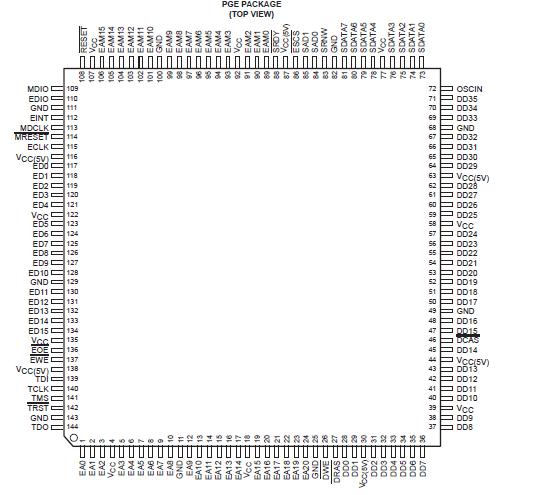

Packaged in 144-Terminal Plastic Quad Flatpack

The TNETX15AE performs the address-lookup function for either the TNETX3150/TNETX3150A or the TNETX3100 EthernetE switch. The TNETX15AE device determines the addresses to use and match from the TNETX3150/TNETX3150A/TNETX3100 DRAM bus. The address-lookup table is maintained in external SRAM. The frame-matching and routing information is given to the TNETX3150/TNETX3150A/TNETX3100 through the external address-matchingEAM interface.

The TNETX15AE is designed to work in either unmanaged or managed mode. Unmanaged operation is accomplished through EEPROM support. Startup options are auto-loaded into the TNETX15AE registers using the EEPROM interface. If the TNETX15AE is initialized by automatic loading from the EEPROM, it begins operation automatically.All functions of this device are fully controllable by management through a direct input/output (DIO) interface. In addition, this device can interrupt the external management processor with user-selectable interrupts. This device also provides support for easy management control of IEEE Std 802.3u media-independent interface (MII) managed devices. A typical application is shown in Figure 1.
