Product Details

Description



Features:

Single-Chip EtherLoop Transceiver
Programmable Transmit (TX) and Receive (RX) Gain Via Digital Interface
Low Overall Power Consumption
Power-Down Mode Minimizes Server Modem Power Consumption in Multiplexed Applications
Low Noise
Low Distortion
All Terminals Protected to Survive, Without Damage, a Simulated Static Discharge of 1 kV From a 100-pF Capacitor Applied Through a 1.5-kW Resistor With Respect to Chip Ground (VEE)
Single-Rail 5-V Power Supply
Operating Temperature 40°C to 85°C Ambient Allows Operation in Central Office and Distributed-Server Modem Applications
48-Pin Thin Plastic Quad Flatpack


Pinout

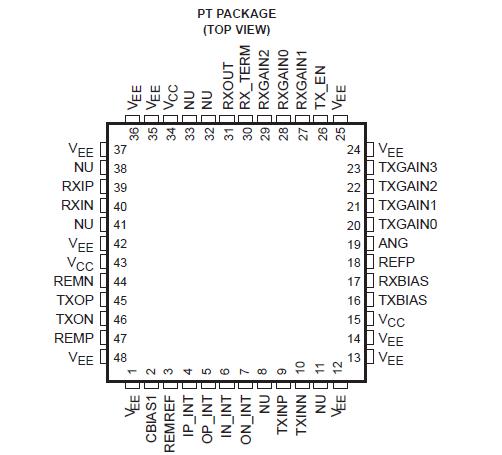

Connection Diagram


Specifications

Supply-voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 4.3 V to VCC to 0.7 V
Input-voltage range: Analog inputs . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . 0.7 V to VCC to 0.7 V
Output-voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 25°C


Description

The TNETEL1400 is an Etherloop transceiver. EtherLoop technology enables simultaneous voice and Ethernet communication over local-loop plain old telephone service (POTS) wiring. The TNETEL1400 supports data rates of up to 6 Mbit/s and POTS wire lengths of up to 21,000 feet. Figure 1 shows a typical system with an EtherLoop modem located at each end of the POTS line. Each EtherLoop modem has a 10Base-T Ethernet interface and is responsible for buffering Ethernet data before sending it over the POTS wire. The server-end (SE) EtherLoop modem is located in a central switching office and can communicate with several client-end (CE) EtherLoop modems, based on a round-robin arbitration scheme. The CE EtherLoop modem typically is located at a remote site.
