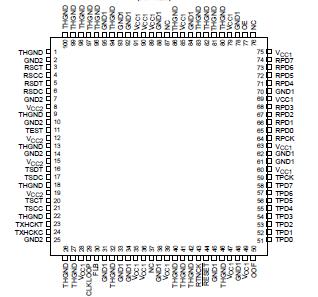

TNETA1611

Supply voltage range, V_CC1, TTL (see Note 1) . . . . . . . . . . . . . . . . . . . .. . . 0.5 V to 7 V
Supply voltage range, V_CC2, PECL (see Note 1) . . . . . . . . . . . . . . . . .. . . . . 0.5 V to 7 V
Input voltage range, V_I: TTL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . 1.2 V to 7 V
                                       PECL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 0 V to V_CC2
Operating free-air temperature range, T_A (see Note 2) . . . . . . . . . . . . .  . . 40°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . 65°C to 150°C

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. All voltage values are with respect to the GND terminals.
            2. An external heat sink is required (Wakefield Engineering D10650-40 or equivalent).

The TNETA1611 is an STS-12c/STM-4 receiver/transmitter that performs data serialization and deserialization for 622.08-Mbit/s data streams used in STS-12c/STM-4 systems. On the receive side, bit alignment is performed on the serial input data such that parallel data is output on SONET/SDH byte boundaries. The TNETA1611 conforms to applicable SONET/SDH standards and can simultaneously convert the serial data to byte-wide data and the byte-wide data to serial data. Clock and data loopback features increase versatility. The TNETA1611 is designed for operation with a heat sink over a temperature range of 40°C to 85°C
