Product Details

Description



Features:

 Dot and N-Line Inversion Available
Six-Bit (64 Gray-Scale) Digital Driver
Mini-LVDS Level Input (Five Pairs of Serial Data Inputs)
480 Output Ports (for UXGA Format)
VDD for Logic Port: 2.7 V to 3.6 V
VDD for LCD Driving Port: 8 V to 13.5 V


Pinout

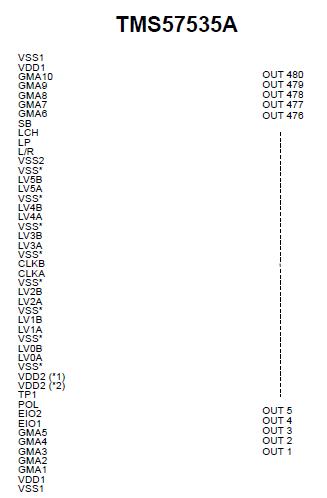

Connection Diagram


Specifications

Supply voltage at logic port, VDD2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 5 V
Supply voltage at driver port, VDD1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . 0.5 V to 14.0 V
Input voltage: GMA1 to GMA10 . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . 0.5 V to VDD1 + 0.5 V
                        Except GMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VDD2 + 0.5 V
Output voltage: EIO1, EIO2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VDD2 + 0.5 V
                          OUT1 to OUT480 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VDD1 + 0.5 V
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 55°C to 125°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

TMS57535A is a six bit (64 gray-scale) source driver for TFT liquid-crystal display (LCD) with 480 output ports to deal with UXGA format. Reduction in the number of input ports and electromagnetic interference (EMI) is expected with the introduction of mini-LVDS (low voltage differential signaling) interface at the input ports.
