TMP89FS60

Features: 1. 8-bit single chip microcomputer TLCS-870/C1 series- Instruction execution time :125 ns (at 8 MHz)122 s (at 32.768 kHz)- 133 types & 732 basic instructions2. 27 interrupt sources (External : 6 Internal : 21 , Except reset)3. Input / Output ports (58 pins) Large current output: 8 pi...

product image

TMP89FS60 Picture
See larger image
SeekIC No. : 004524685 Detail

TMP89FS60: Features: 1. 8-bit single chip microcomputer TLCS-870/C1 series- Instruction execution time :125 ns (at 8 MHz)122 s (at 32.768 kHz)- 133 types & 732 basic instructions2. 27 interrupt sources (Ex...

TMP89FS60 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMP89FS60
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1. 8-bit single chip microcomputer TLCS-870/C1 series
- Instruction execution time :
125 ns (at 8 MHz)
122 s (at 32.768 kHz)
- 133 types & 732 basic instructions
2. 27 interrupt sources (External : 6 Internal : 21 , Except reset)
3. Input / Output ports (58 pins) Large current output: 8 pins (Typ. 20mA)
4. Watchdog timer
- Interrupt or reset can be selected by the program.
5. Power-on reset circuit
6. Voltage detection circuit
7. Divider output function
8. Time base timer
9. 16-bit timer counter : 2 ch
- Timer, External trigger, Event Counter, Window, Pulse width measurement, PPG OUTPUT modes


Pinout

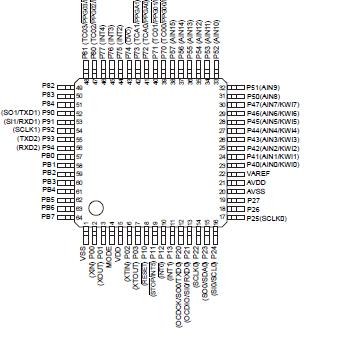

Connection Diagram


Specifications

Parameter Symbol Pins Ratings Unit
Supply voltage VDD   −0.3 to 6.0 V
Input voltage VIN1 P0, P1, P2 (excluding P23 and P24), P4, P5,
P7, P8, P9, PB (tri-state port)		 −0.3 to VDD + 0.3 V
VIN2 P23, P24 (sink open drain port) −0.3 to VDD + 0.3
VIN3 AIN0 to AIN15 (analog input voltage) −0.3 to AVDD + 0.3
Output voltage VOUT1   −0.3 to VDD + 0.3 V
Output current (per pin) IOUT1 P0, P1, P2 (excluding P23 and P24), P4, P5,
P7, P8, P9, PB (tri-state port)		 −1.8 mA
IOUT2 P0, P1, P2, P4, P9 (pull-up resistor) −0.4
IOUT3 P0, P1, P2, P4, P7, P8, P9 (tri-state port) 3.2
IOUT4 PB (large current port) 30
Output current (total) IOUT1 P0, P1, P2 (excluding P23 and P24), P4, P5,
P7, P8, P9, PB (tri-state port)		 −30
IOUT2 P0, P1, P2, P4, P9 (pull-up resistor) −4
IOUT3 P0, P1, P2, P4, P5, P7, P8, P9 (tri-state port) 60
IOUT4 PB (large current port) 120
Power dissipation (Topr = 85°C) PD   250 mW
Soldering temperature (time) Tsld   260 (10 s)
Storage temperature Tstg   −55 to 125
Operating temperature Topr   −40 to 85
