Product Details

Description

Pinout

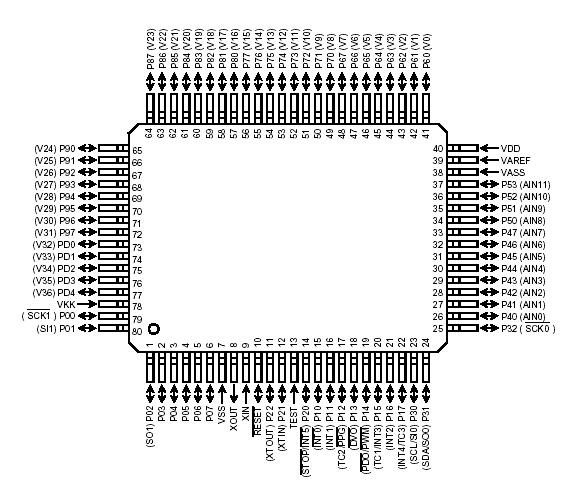

Connection Diagram

Specifications

Parameter	Symbol	Pins	Ratings	Unit
Supply Voltage	V_DD		−0.3 to 6.5	V
Program Voltage	V_PP	TEST/VPP	−0.3 to 13.0
Input Voltage	V_IN		-0.3 to V_DD + 0.3
Output Voltage	V_OUT1	P2, P3 (at open drain)	-0.3 to V_DD + 0.3
Output Voltage	V_OUT2	P6, P7, P8, P9, PD	_VDD − 40 to V_DD + 0.3
Output Current (Per 1 pin)	I_OUT1	P0, P1, P2, P4, P5	3.2	mA
Output Current (Per 1 pin)	I_OUT2	P6, P7, P8, P9, PD	-25
Output Current(Total)	I_OUT1	P0, P1, P3, P4, P5	-40
	I_OUT2	P0, P1, P2, P3, P4, P5	120
	I_OUT3	P6, P7, P8, P9, PD	-160
Power Dissipation [Topr =25]	PD (Note 2)		1200	mW
Soldering Temperature (time)	T_sld		260 (10 s)
Storage Temperature	T_stg		−55 to + 125
Operating Temperature	T_opr		−30 to 70
