TMP88FW44FG

Features: 1. 8-bit single chip microcomputer TLCS-870/X series- Instruction execution time :0.20 s (at 20 MHz)- 181 types & 842 basic instructions2. 36 interrupt sources (External : 5 Internal : 31)3. Input / Output ports (91 pins)Large current output: 24pins (Typ. 20mA), LED direct drive4. Pr...

product image

TMP88FW44FG Picture
See larger image
SeekIC No. : 004524672 Detail

TMP88FW44FG: Features: 1. 8-bit single chip microcomputer TLCS-870/X series- Instruction execution time :0.20 s (at 20 MHz)- 181 types & 842 basic instructions2. 36 interrupt sources (External : 5 Internal :...

TMP88FW44FG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMP88FW44FG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1. 8-bit single chip microcomputer TLCS-870/X series
- Instruction execution time :
0.20 s (at 20 MHz)
- 181 types & 842 basic instructions
2. 36 interrupt sources (External : 5 Internal : 31)
3. Input / Output ports (91 pins)
Large current output: 24pins (Typ. 20mA), LED direct drive
4. Prescaler
- Time base timer
Divider output function (DVO)
5. Watchdog Timer
Select of "internal reset request" or "interrupt request".
6. 16-bit timer counter: 1 ch
- Timer, External trigger, Window, Pulse width measurement,
Event counter, Programmable pulse generate (PPG) modes
7. 16-bit timer/counter(CTC): 1ch
- CTC:Timer,event counter or PPG (Programmable Pulse) output
8. 8-bit timer counter : 1 ch
- Timer, Event counter, Capture modes
9. 8-bit timer counter : 1 ch
- Timer, Event counter, Pulse width modulation (PWM) output,
Programmable divider output (PDO) modes
10. 8-bit timer counter : 2 ch
- Timer, Event counter, Programmable divider output (PDO),
Pulse width modulation (PWM) output,
Programmable pulse generation (PPG) modes
11. Programmable motor driver (PMD) : 2 ch
- Sine wave drive circuit (built-in sine wave data-table RAM)
Rotor position detect function
Motor contro timer and capture function
Overload protective function
Auto commutation and auto position detection start function
12. 8-bit UART : 2 ch
13. 8-bit SIO: 1 ch
14. 10-bit successive approximation type AD converter
- Analog input: 16 ch
15. 8-bit High-speed PWM (HPWM0 and HPWM1)
16. Clock oscillation circuit : 1 set
17. Low power consumption operation (2 modes)
- STOP mode: Oscillation stops. (Battery/Capacitor back-up.)
- IDLE mode: CPU stops.
Only peripherals operate using high frequency clock. Release by interruputs (CPU restarts).
18. Operation voltage:
4.5 V to 5.5 V at 20MHz


Pinout

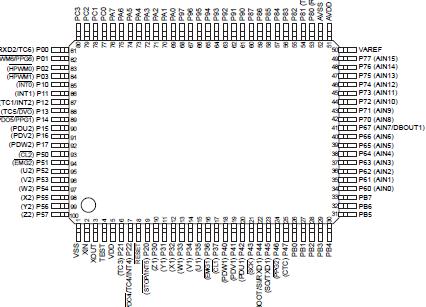

Connection Diagram


Specifications

Parameter Symbol Pins Ratings Unit
Supply voltage VDD   -0.3 to 6.5 V
Input voltage VIN   -0.3 to VDD + 0.3 V
Output voltage VOUT1   -0.3 to VDD + 0.3 V
Output current (Per 1 pin) IOH P0,P1,P3,P4,P5,P6,
P7,P8,P9,PA,PB,PC
ports		 -1.8 mA
IOL1 P0,P1,P2,P6,P7,P8,
P9,PA,PB,PC ports		 3.2
IOL2 P3,P4,P5 ports 30
Output current (Total) IOUT1 P0,P1,P2,P6,P7,P8,P9,
PA,PB,PC ports		 60 Total current (Normal ports)
(Except P3,P4,P5)
IOUT2 P3 port 60 Total current (8 pins)
P3 large current port
IOUT3 P4 port 60 Total current (8 pins)
P4 large current port
IOUT4 P5 port 60 T5tal current (8 pins)
P3 large current port
Power dissipation PD Topr = 85 °C 350 QFP
Soldering temperature (time) Tsld   260 (10 s) mW
Storage temperature Tstg   -55 to 125 °C
Operating temperature Topr   -40 to 85
